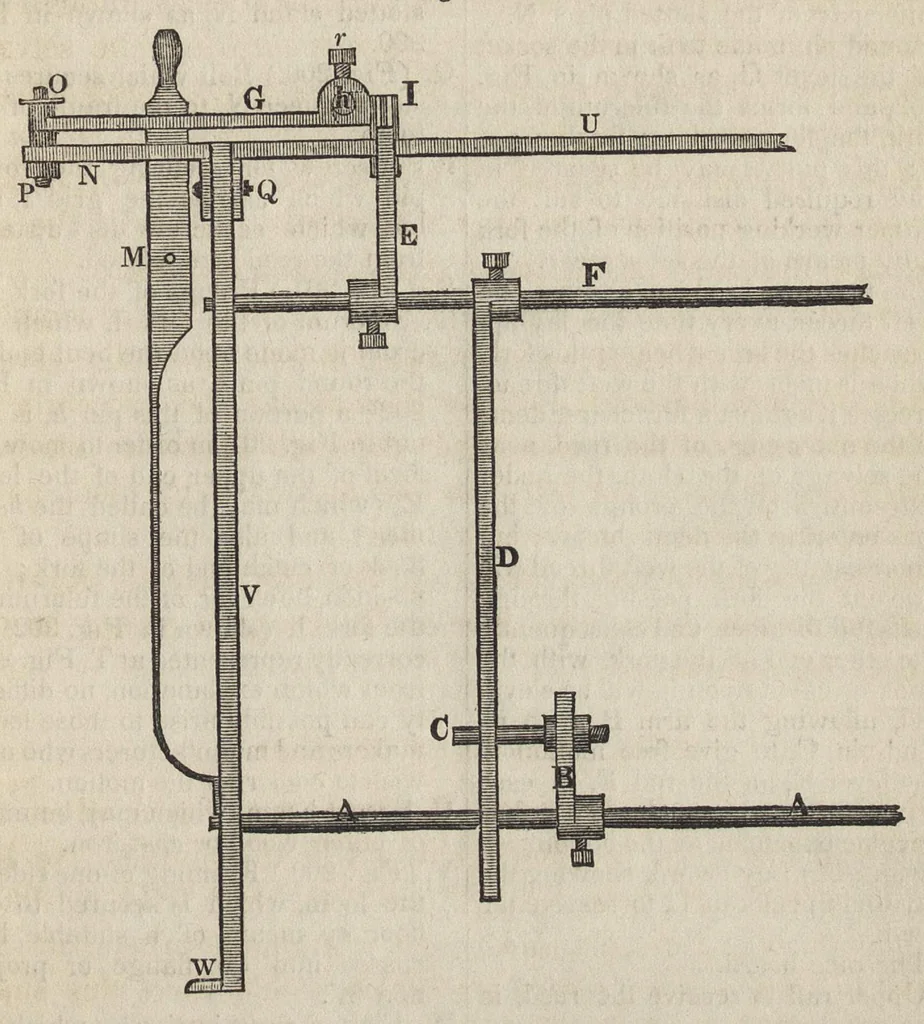

417 FANCY WEAVING. Fig. 200, represents a back elevation of a common power loom, having the fork and grid mechanism attached thereto ; Fig. 201, a side elevation, in section, of so much of the loom as will enable us to show the application of the motion ; and Fig. 202, a plan view of part of the… … oftheloom, is shown in Fig. 200, A A, Cam shaft. and a side view is given in Fig. 201. B, Arm fixed upon the cam shaft A A. E, Catch lever, also fixed on the shaft C, Stud-pin bolted in the arm B, for or rod F, as shown in Fig. 200, a raising the lever D. side view of it may be seen in Fig. D,…
