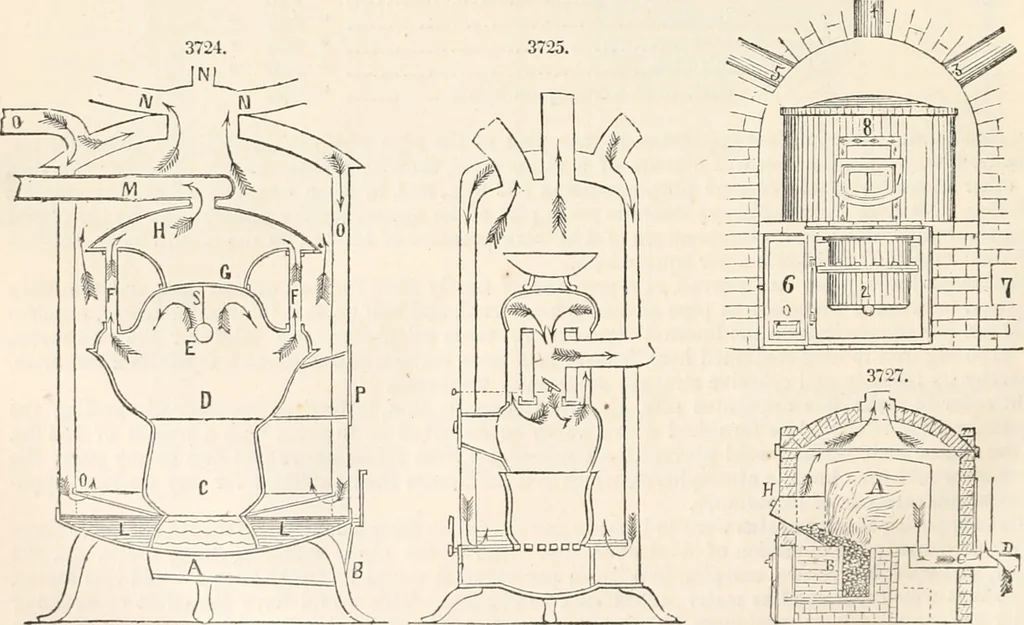

McGregor** hot-air furnace.—Fig. 3726 is a front view of largest furnace set in mason-work. 1, feeddoor; 2, fire-chamber; 3, 4, and 5, hot-air pipes; G, ash-pit door; 7, cold-air box; 8, cylinder chamberfor generating hot air. Fig. 3727 exhibits an internal view of the structure of the furnace. A C…
