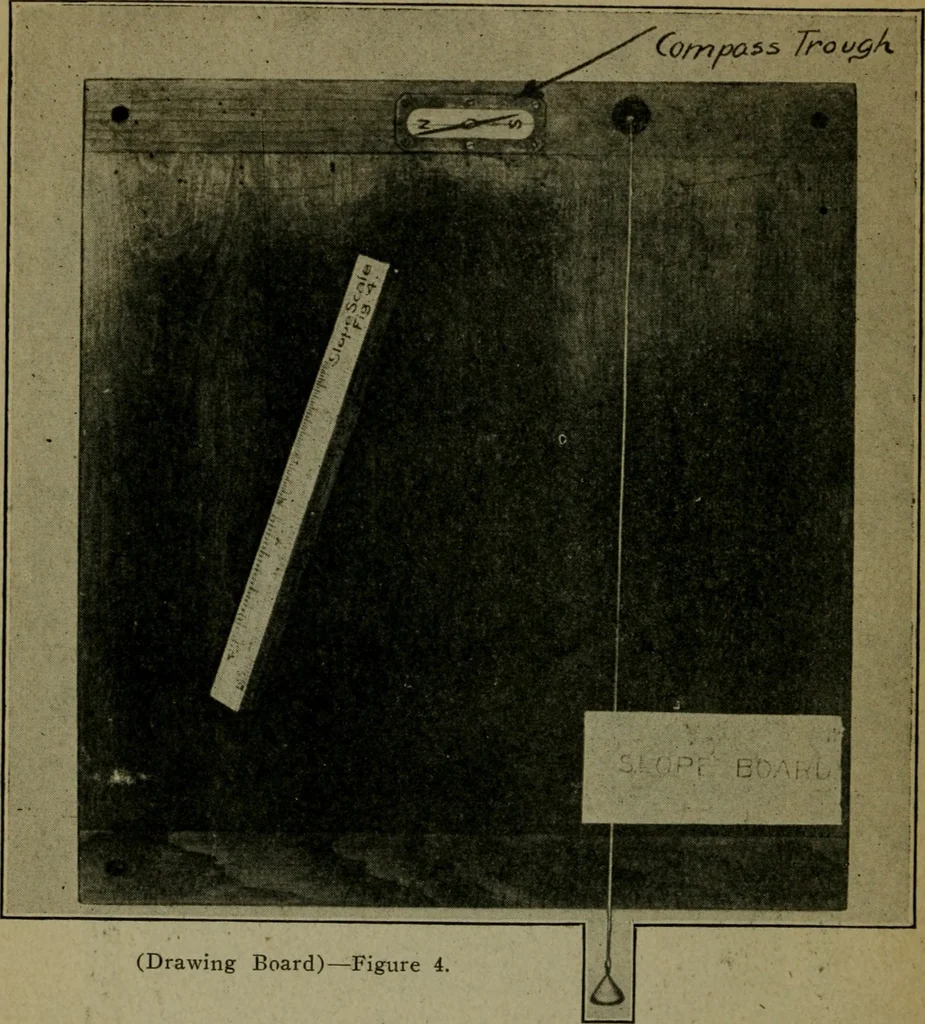

(Sketching Case)—Figure 3. 168 CHAPTER VII. as at A. With the scale of the sketchers strides on the ruler, Fig. 3, layoff the number of strides found from A, Fig. 1 Y, to B, Fig. 1 X, andmark the point (b), Fig. 1 X. Other points, such as C, D, etc., would belocated in the same way. … (Drawing Board) (3) To draw in contours on a sketch, the following steps are necessary:(a) From the known or assumed elevation of a located station as A, Fig. 1 Y, (elevation 890), the elevations of all hill tops, stream junctures, stream sources, etc., are determined. MILITARY SKETCHING. 169 (b)…
