Elementary cabinetwork for manual training classes (1909)
Selden, Frank Henry. [from old catalog] · Chicago, New York [etc.] Rand, McNally & company · leaf 46

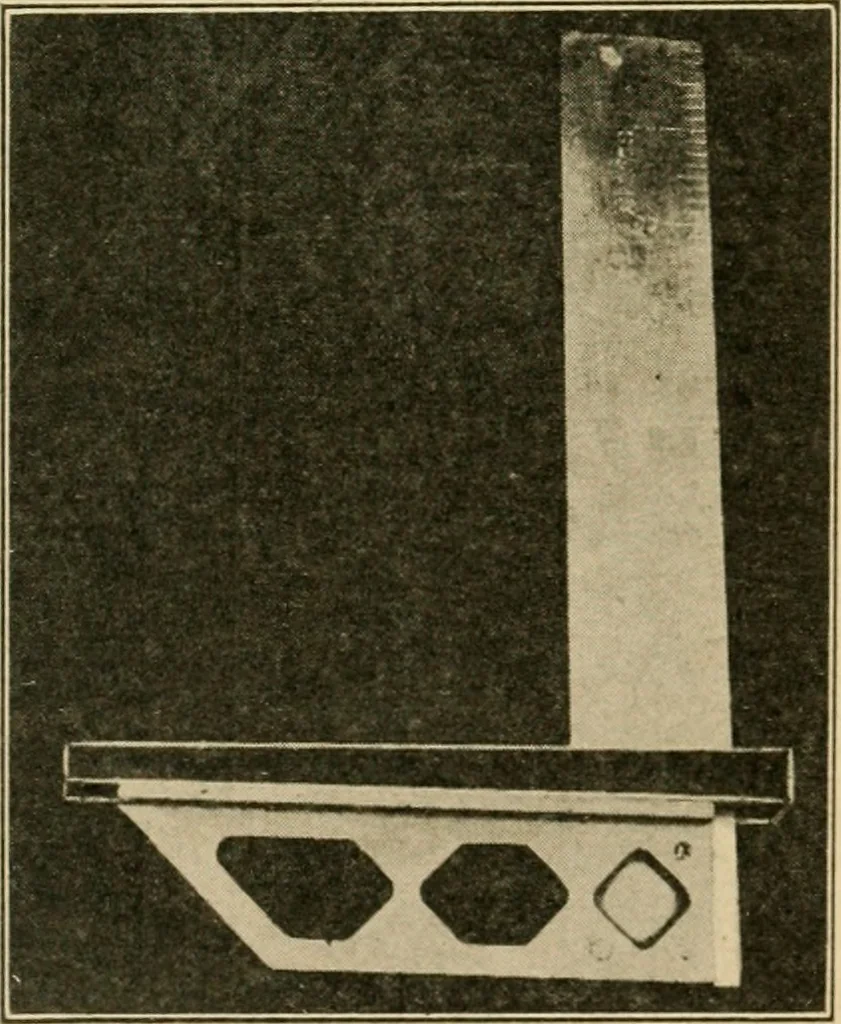

hese legs may belaid out by drawing linesas shown, but it is usualto lay out a thin piece ofboard in this manner,and then use it as a pat-tern. This will save timeif more than one pairof legs is to be made,and will also save mate-rial, for the pattern canbe laid on the stock andtried in several… … Fig. 23. Tapered piece onhead of try-square 40 ELEMENTARY CABINETWORK
Cabinetwork
