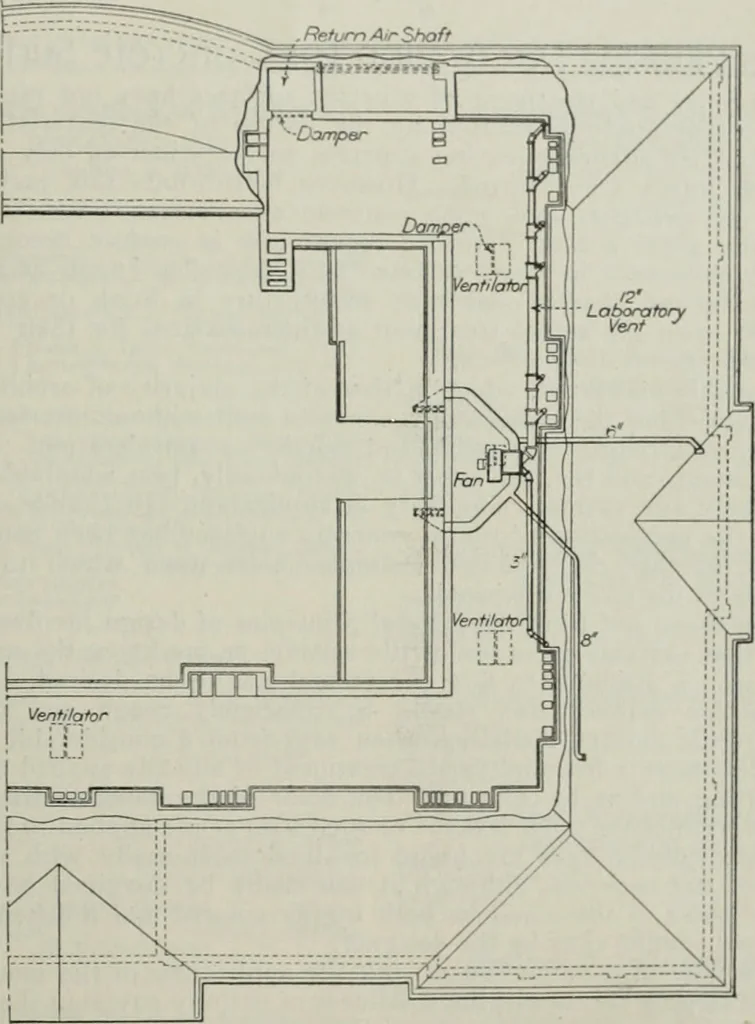

Fan Room Detail. New School Building The Architect and Engineer 97 always a greater air pressure in t lie former than in the latter, effectuallypreventing odors from the toilets anywhere in the building. The bventilation is entirely separate from the room ventilation. 1 lie new high school was… … Exhaust and Return Circulation in Neu Building floor level, tempered and delivered by the fans into a tunnel which exbunder the center of the corridor, around three sides of the building. In thistunnel are nine groups of reheating coils and all of the piping for steamand condensation. The tunnel is…
