San Francisco : Architect and Engineer, Inc · leaf 231

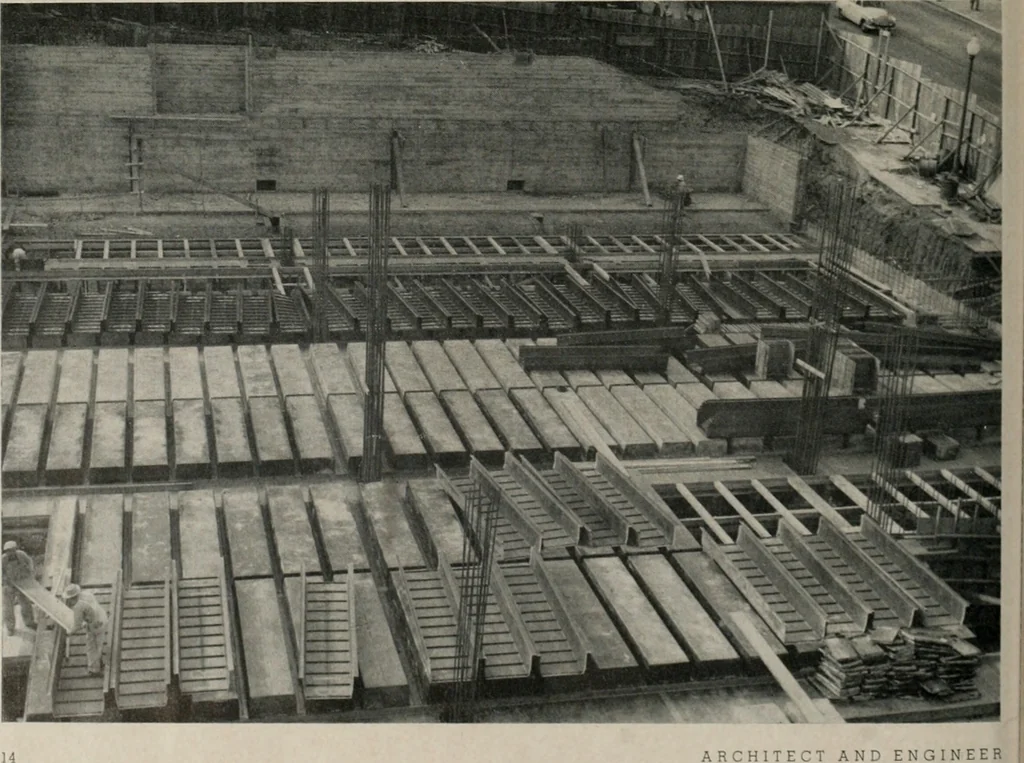

CLOSE-UP VIEW of long span pans framing intobridging. NOTE the notches whichhove been provided to receivethe flanges on the pans. Pan forms in place on the fourth floor near California Street. NOTE how the column barsextend two stories to eliminate any crowding at the splices. … tCT AND ENGINEER ^••CJv V. INSTALLATION of WOOF FRAMES for construction of the fourth floor onCalifornia Street side. The steel pan forms will be placed betweenthe girders and the bridging.
