San Francisco : Architect and Engineer, Inc · leaf 159

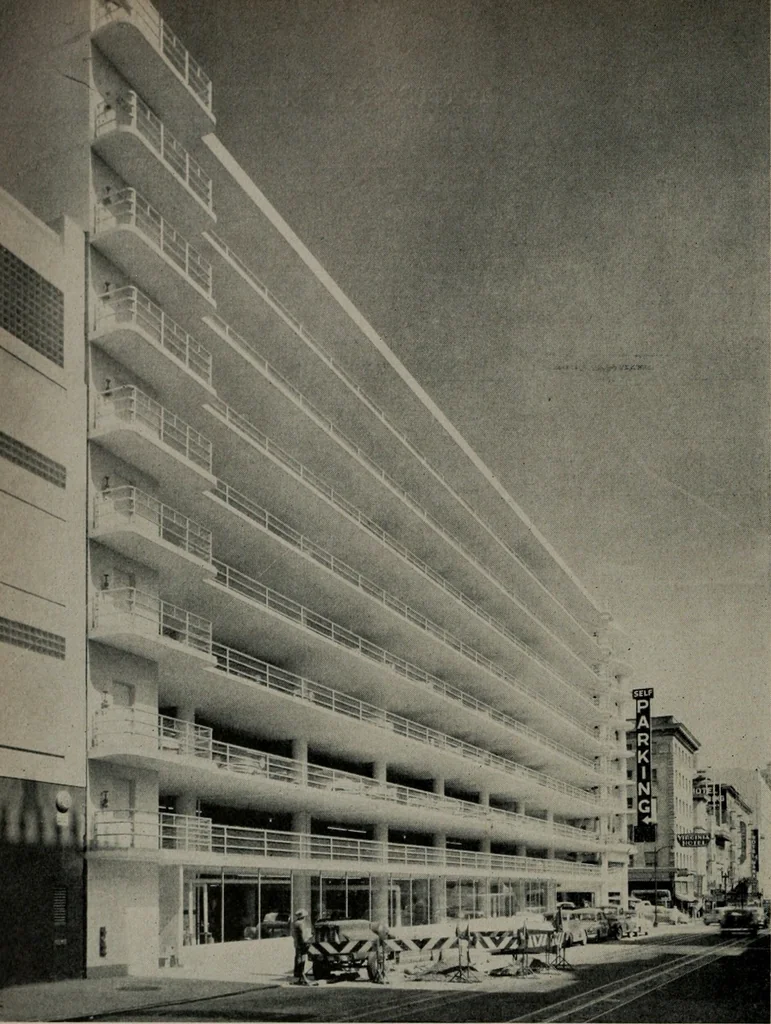

GARAGE as viewedfrom sidestreet. down ramps located at the exterior corner of thebuilding. The maximum turning diameter of the outer(up) ramp is 930 and the minimum turning diameterof the inner (down) ramp is 380. Clearance betweencurbs on the up ramp is 110 and on the downramp is 126. Up and down…
