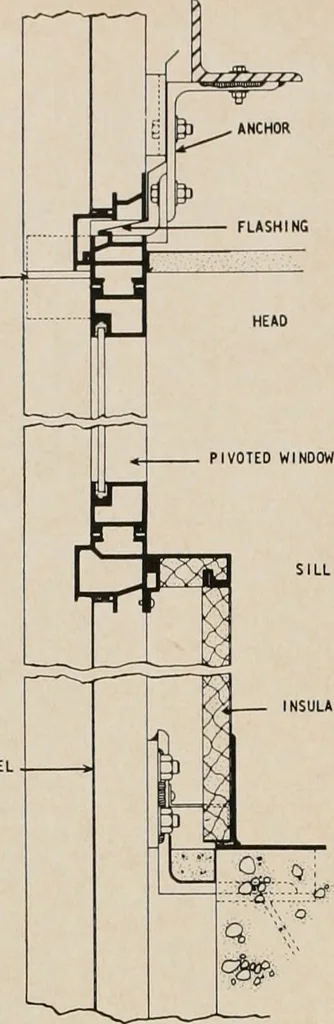

OCTOBER, 195 EXPANSION JOINT PORCELAIN PANEL … INSULATING PANEL VERTICAL SECTION at left: is through wall showingvertically pivoted sash which is reversible for cleaning.Weathertightness is insured by the continuous flashing inthe expansion joint at the window head and by designingeach horiiontal to allow for drainage. Anchors are de-signed for…
