Architectural engineering. With special reference to high building construction, including many examples of Chicago office buildings (1895)
Freitag, Joseph Kendall · New York, J. Wiley & sons; [etc., etc.] · leaf 178

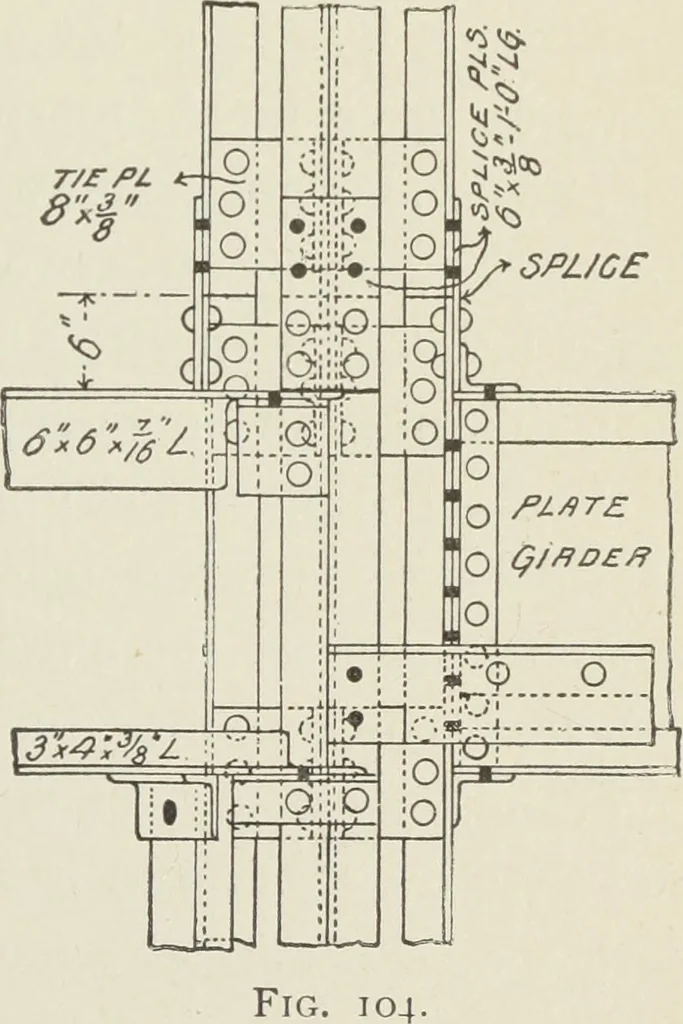

hown on the drawings.The holes for these splice-plates in the bottom of thecolumn shall be punched -§- in.small. After the splice-platesare riveted to the top of thecolumn, the top column shallbe put in place and the holesreamed, using the splice-platesas templates. The connections of joists or… … i6o ARCHITECTURAL ENGINEERING. Fig. 104 shows a typical detail of a column splice inthe Reliance Building, where the framing for a bay win-dow joins the column. Foster Milliken, in his discussion of Quimbys article,classifies the points constituting a perfect joint as follows: 1. Continuity of…
Building, Iron and steel
