Technology of textile design. Being a practical treatise on the construction and application of weaves for all textile fabrics, with minute reference to the latest inventions for weaving (1888)
Posselt, E. A. (Emanuel Anthony), 1858-1921 · Philadelphia, Pub. by the author [etc.]; London, S. Low, Marston, Searle & Rivington, limited · leaf 176

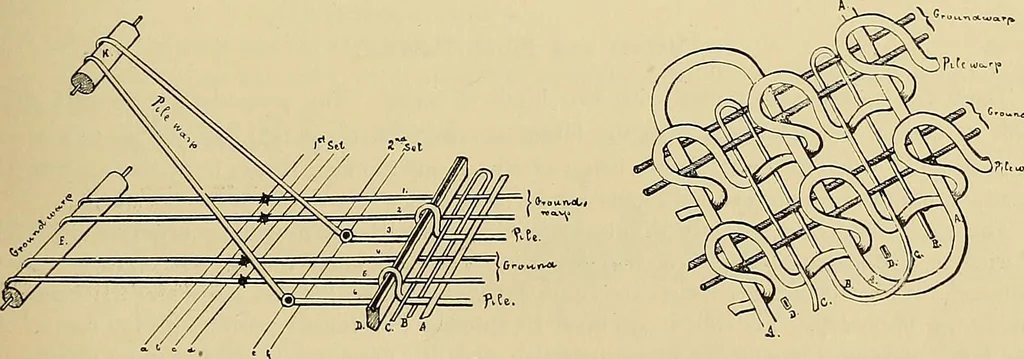

Fig. 787 we illustrate a weave for a pile fabric. Repeat: 3 warp-threads, 4 picks. Ar-rangement of warp: 2 threads ground (2, 3, 5 and 6), i thread pile (i and 4) = 3 threads in repeat.Filling: I ground pick heavy {A), 2 ground picks finer (^B and C), i pick for inserting v/ire (Z*),= 4 picks in… … Fig. 789. Fig. 790. Fig. 789 illustrates the method of operation on the loom. Every letter or number used Inthis diagram corresponds with those used in Figs. 787 and 788. and thus will readily explainitself. 168 Fig. 790 represents a reproduction in perspective of the fabric as produced with weave…
