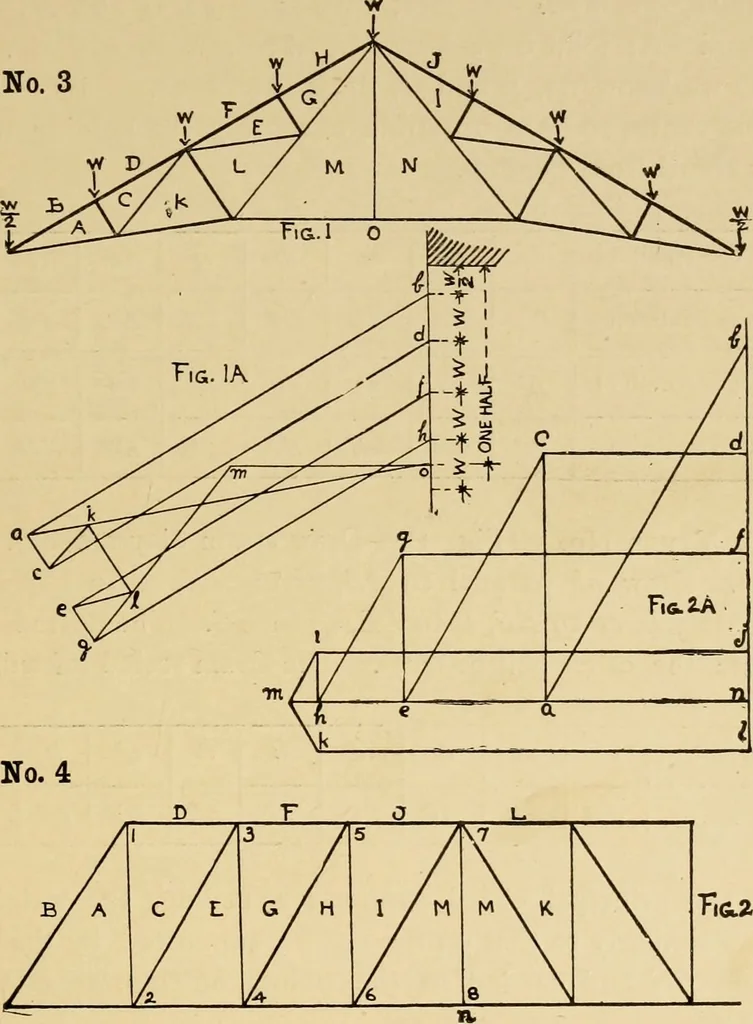

ss through /. Draw om intersecting gm at m.lm lies over gm and is taken as two lines. MM is a light rodpreventing the main tie from sagging. The strain may thenbe scaled off, on which the total load = L as follows: The length of ab aoAO cdCD acAC ckCK efEF ghGH klKL elEL gmGM omOM lmLM = strain on… … heretofore, commencing with the joints nearest the support.Thus bd = joints 1 and 2, df = joints 3 and 4, fj = joints 5and 6, and nj and nl each equal one half of loads at 7 and 8.One half of the total load on the truss being sustained by each 40 ARCHITECTURAL IRON AND STEEL. support and commencing…
