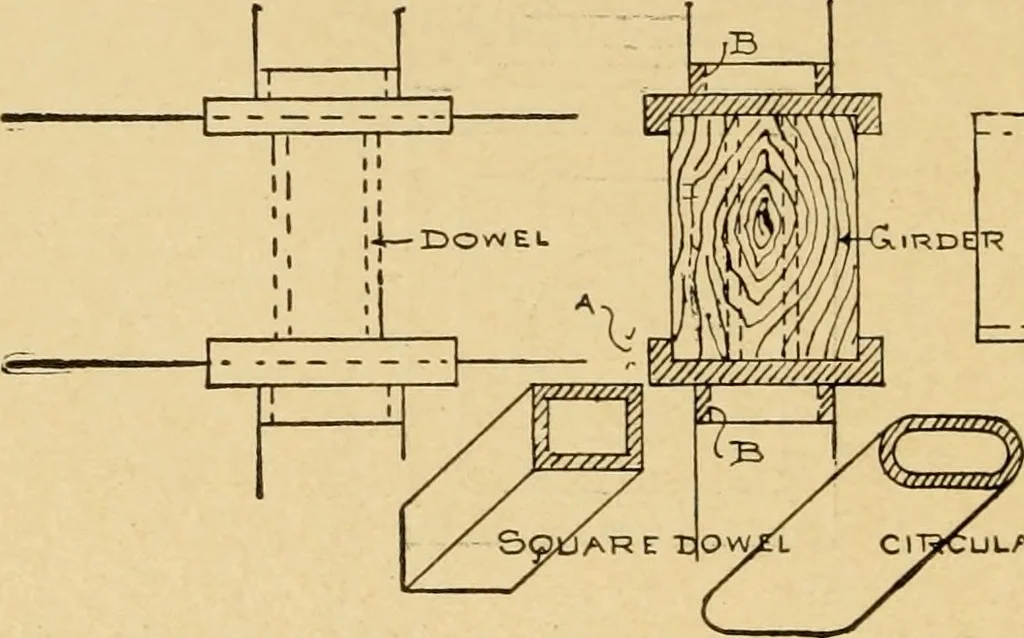

ver the stone from one to two inches in thickness.Set the base plate in its proper place, ramming it down solid,true and level. 117. Cast-iron Dowels for Wooden Columns.—Woodencolumns connected by iron dowels are equally as objectionableas dowelled iron columns. The doivels for the former are… … ULAR END DOWEL The lip on plate at A is usually \\ inches, and the lower lip(B) 2 inches by £ of an inch thick. 118. Wrought-iron Pins and Cast-iron Star-shapedDowels—are also used similarly to the above. In each case the holes for inserting the dowels are firstbored through the wooden girder…
