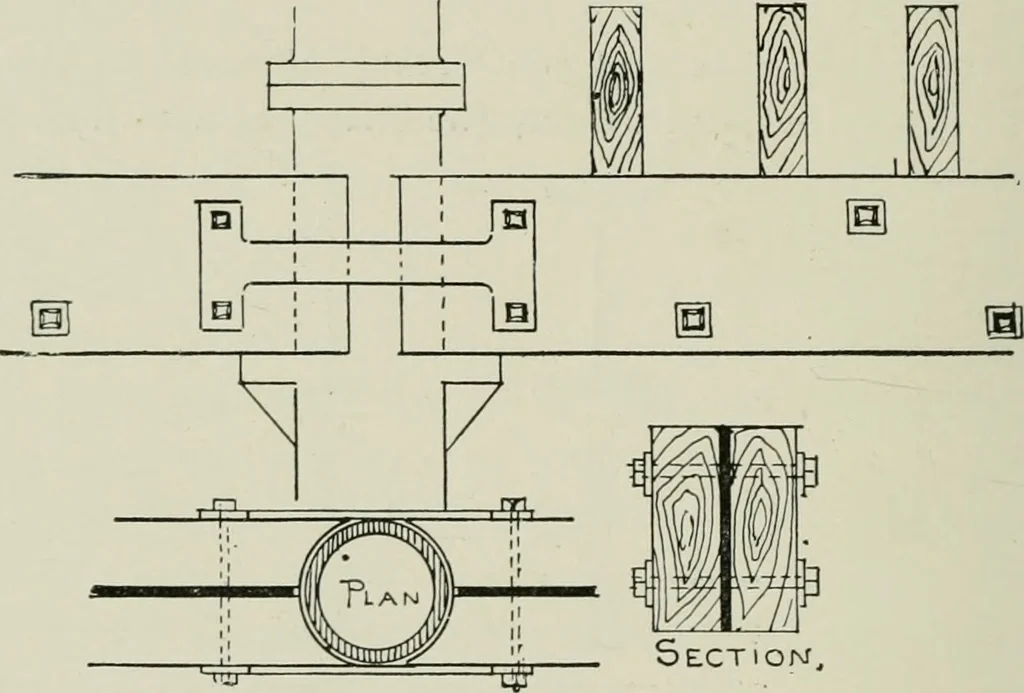

h-plate girder issometimes adopted (see plan and section). It is composed oftwo wooden beams connected by an iron plate with -l-inchbolts placed about two feet apart. 126 ARCHITECTURAL IRON AND STEEL. It has been found in practice that the thickness of theplate should be about one twelfth of the… … Section, might be thrown on the plate. The modulus of elasticity ofwrought iron is about thirteen times that of hard pine ; or abeam of hard pine one inch wide would bend thirteen times asmuch as a plate of iron of the same size under the same load. Let D = depth of beam ;B = thickness of wood ;L =…
