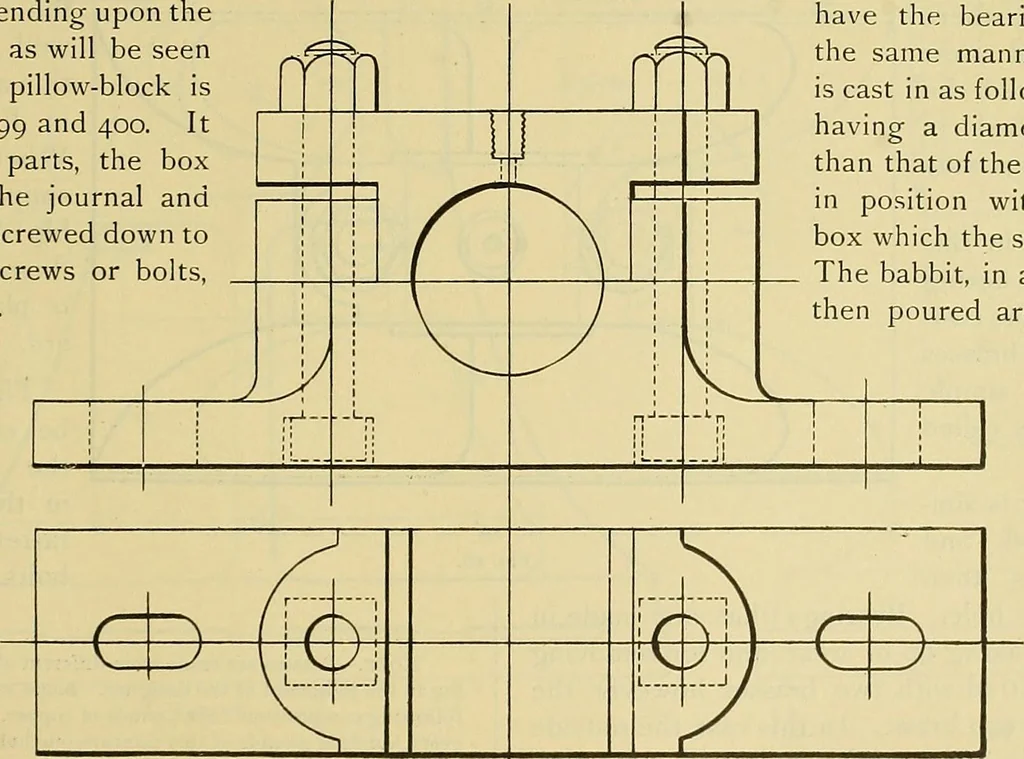

fixed surface is called a pedestal orpillow-block, depending upon thetype of bearing, as will be seenlater. A simple pillow-block isshown in Figs. 399 and 400. Itconsists of two parts, the boxwhich supports the journal andthe cap which is screwed down tothe box by two screws or bolts,called… … with babbit, a soft metal whose composition is as fol-lows : One pound of copper, ten pounds of tin andone pound of antimony. To hold the babbit inplace recesses are cast in the cap and base, extendingalmost across the entire width of the bearino-. Thehangers as well as the wall brackets shown…
