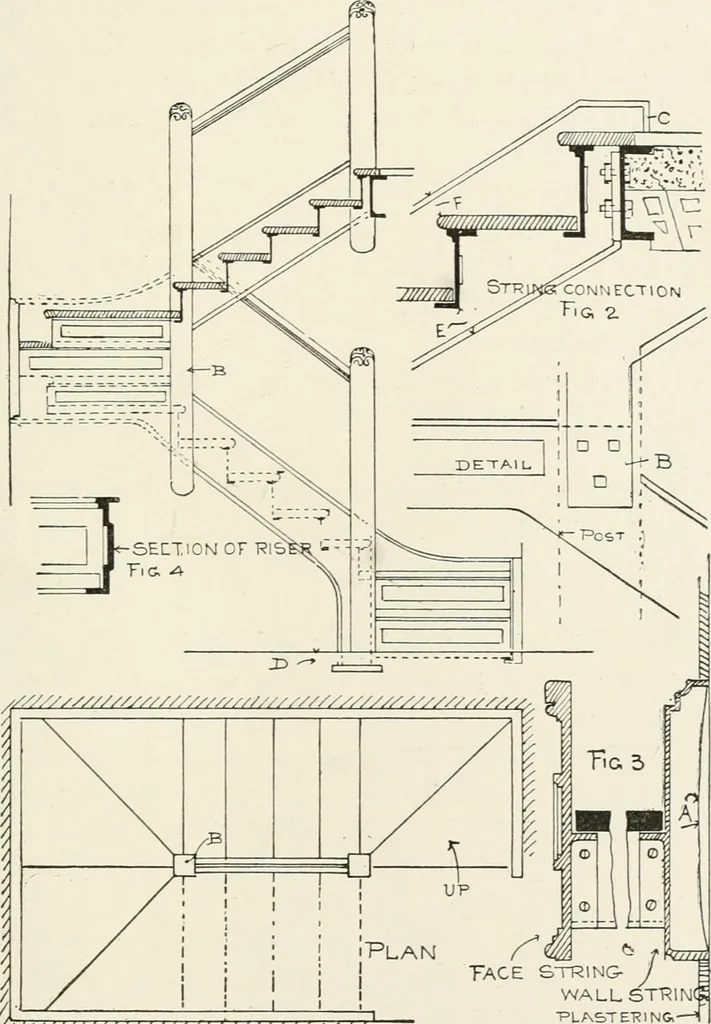

128. To Measure Height of Railing.—The railing heightis measured from a point on the tread directly above the faceof riser (not the moulding under the nosing of tread), andshould be from 2 feet 8 inches to 3 feet. Fig. 2 is the string STAIRIVA YS. 73 connection at the top of stairs. The wall string… … ^77777777777777777777777777^7777 flange to receive any furring placed on wall. The section ofwall string at Fig. 3 shows clearly the manner of receiving theplastering. 74 ARCHITECTURAL IRON AND STEEL. To arrange the treads and risers upon the strings, the Fdistance on Fig. 2 should not be less than…
