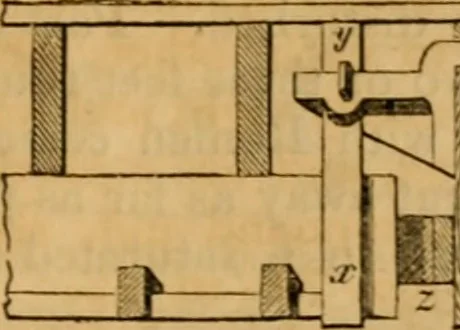

he tension bars. Fig. 83. shows the method adopted for securing the bindingjoists to the girder when trussed; tu is a saddle of cast irondropped over the top of the beam. Under each binding joist,a wrought-iron stirrup (x) is placed (as shown in the end viewfg. 84-.), which is cottered up at yy m…
