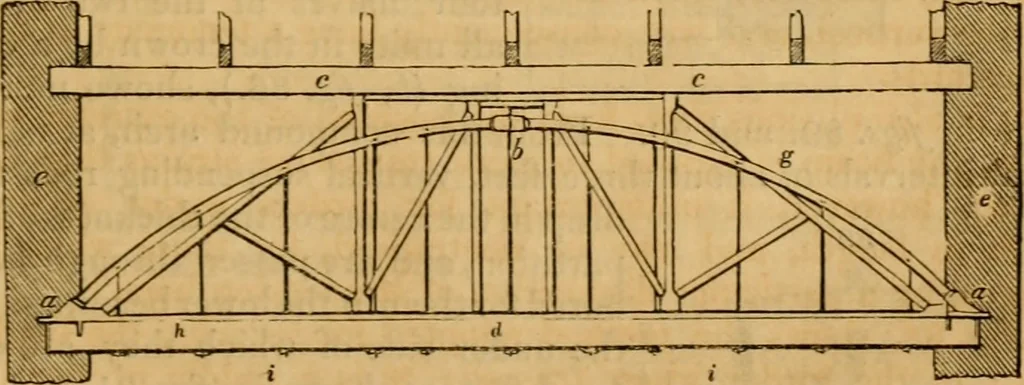

owing to the decay of the lower beam (d); and the joints of thetruss had, therefore, opened in various places. Fig. 8G. shows the same partition with the wrought-iron truss(a b) applied to it, and brought up thereby. The studding of 86 … the partition is left out in this figure, and the truss framingalone shown, together with the wrought-iron truss, to preventconfusion. Each end of the lower beam (d) was built about20 in. into the masonrv of the end walls, and was found con- 174 Mode of securing decai/ed Flooring and PartitionSy…
