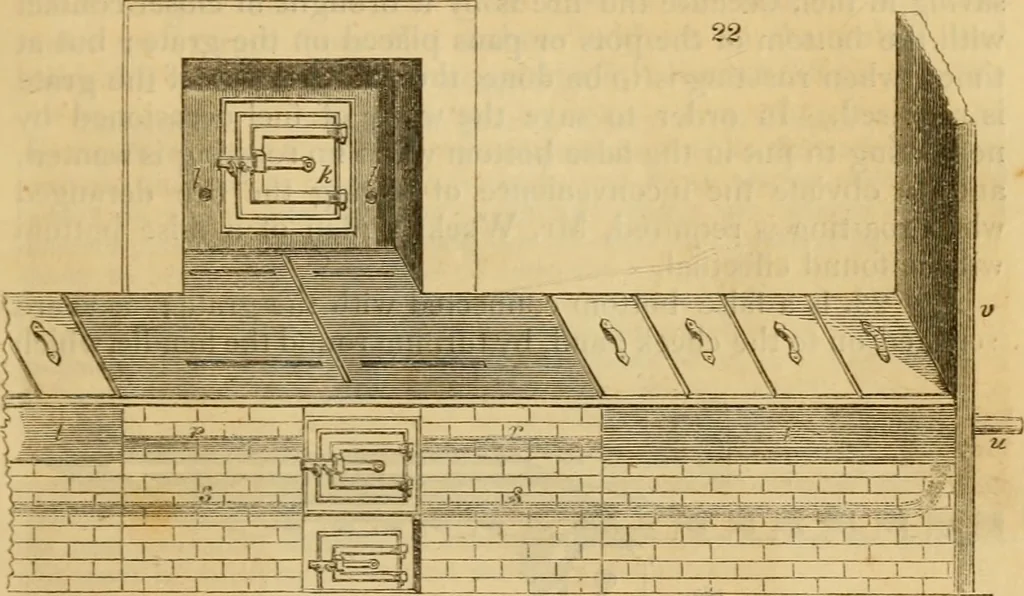

ls with their contents may beeasily and at once lifted out. In Jig. 21. q g are two sheets ofcast iron, which slide in grooves, and are pushed together tokeep the fire and heat from any one engaged at the stewpans.Over this range is a canopy of tin or zinc, to prevent the steamascending to the… … ill- i2 6I I -1. tubes or pipes, which surround the top, the bottom, the back,and the sides of the fire. These pipes, which form the fire-place, communicate with the cisterns on each side by the pipesr r, leading from the top, and the water returns again from thecisterns to the lower part of the…
