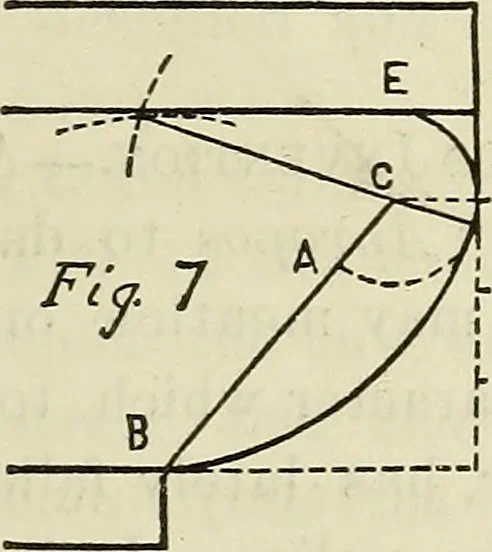

A QUIRKED CIMA REVERSA. (Fig. 6.) Divide the perpendicular height intoseven parts; with two of the parts de-scribe a semi-circle C E ; on A draw aline from E C, and on the height of thefirst division from the bottom B, de-scribe the arc C D, and it will completethe molding. … A QUIRKED OVOLO. (Fig. 7.) Divide the height into four equalparts; with one point on C describe thearc C D ; on C with the distance A B,describe an arc cutting the former at D.Through D and C draw the line D C F,cutting the small circle at F ; then witha radius D F, describe the arc F B, andit will…
