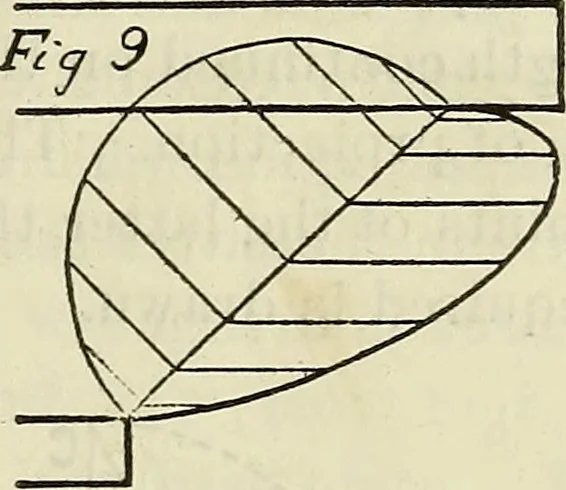

e the smaller circle as in thelast; and through its centre and theend B of the fillet draw the line C B E,taking E according as you intend tohave the under part of the moldingflatter or quicker. Take the distanceE C, and on B describe an arc at D,then take the distance E A that is [E Cmade less by… … QUIRKED MOLDING. (Fig. 9.) By another method. Supposing the projecting to be suchas that shown in the diagram ; dividethe inclined line into two equal parts,and from the centre describe a semi-circle, the circumference of which divideinto eight equal parts. From theseeight divisions draw lines to…
