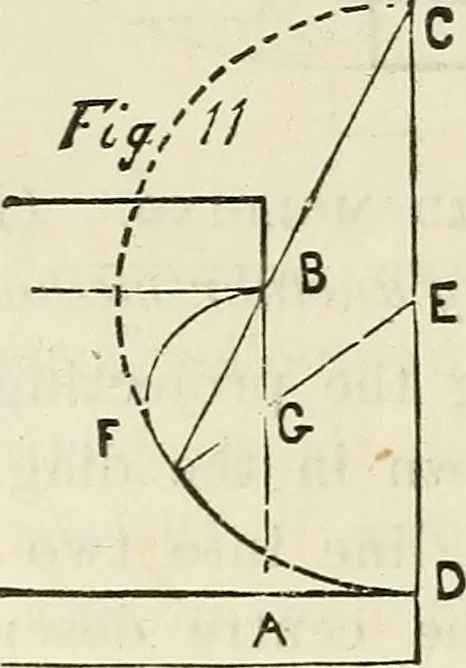

an in any of the preceding, and theupper fillet does not project to the sameextent with the others. A perpendicularline is erected between the two fillets,which is divided into two parts, and asemi-circle is struck from the centre ofit—the circumference of which is dividedinto several parts and… … A SCOTIA. (Fig. 11.) The fillets being determined as tolength, from the upper one a perpen-dicular is let fall, as B A. Erect aparallel to it, and perpendicular to thelower fillet, at D. On this perpendicularset off twice the length of D A, on thelower fillet, namely, from D to E andthen double it.…
