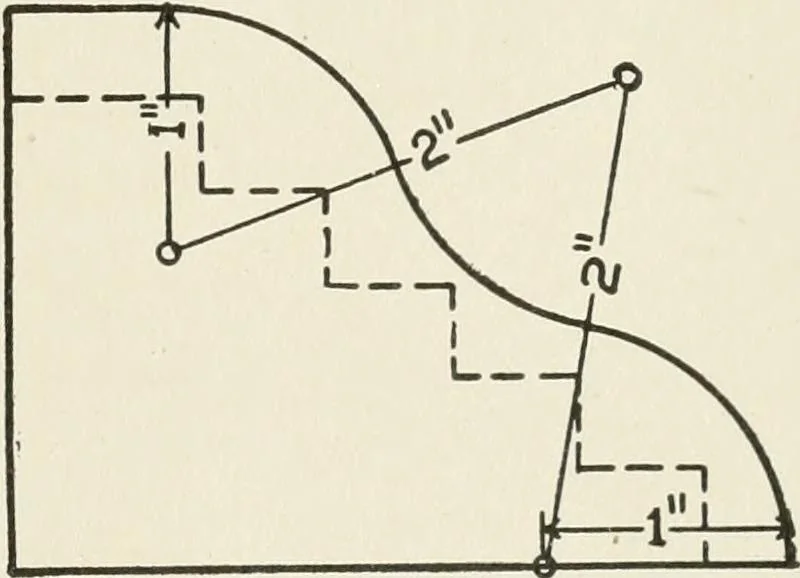

ches long,and the height is 2| inches. Be-ffinnino; from the back of the wall,the top is horizontal for f inch,the remainder of the outline be-ing composed of arcs of circleswhose radii and centers are givenin the figure. The thickness of the end wall is | inch, and both ends are alike. There are… … Fig 197. End View of Fliglit of Steps 143 120 MECHANICAL DRAWING should be constructed on a separate sheet of paper, from the di-mensions given, the points oh the curve being located by horizontalco-ordinates from the vertical edge of the v^all, and then theseco-ordinates transferred to the…
