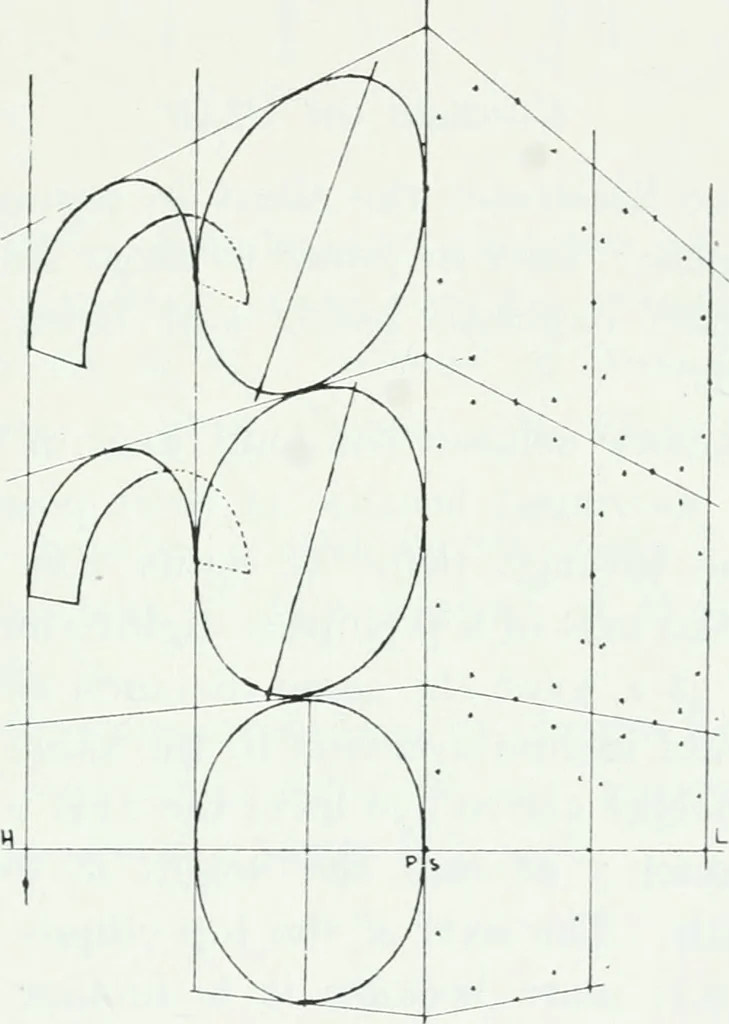

the picture.The illustration shows circles correctly drawn in con-taining squares, continued over all parts of the pictureplane, in order to better show how the ellipses are AND HOW TO SKETCH IT. 55 modified in shape and inclination of axes, as they areplaced relatively to the eye level and… … are tilted on the next row, and more tilted still on thetop row. Gothic pointed arches are just parts of circulararches with the top part omitted and the sides broughtcloser together. I advise that this plate be studiedand re-studied until these truths of accurate representa-tion are thoroughly…
