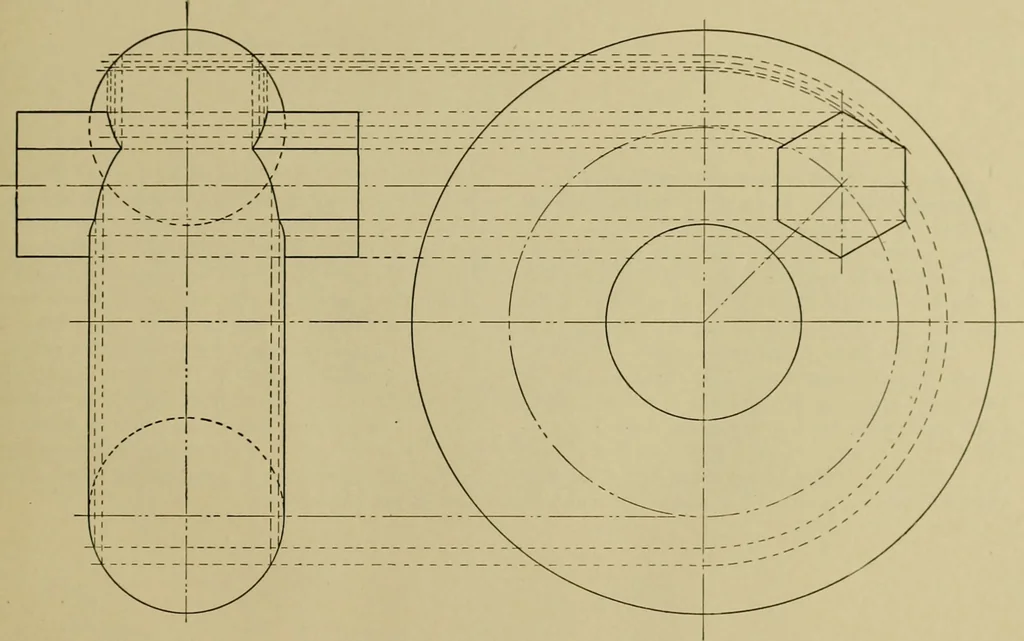

so 90 A MANUAL OF MECHANICAL DRAWING. Plate 26. Intersection of Annuliis and HexagonalPrism. The method for ascertaining the line of intersectionin this case is exactly the same as for the previous lesson (Plate 25), and having- followed the severalsteps in that lesson, the student should have… … 91 92 A MANUAL OF MECHANICAL DRAWING. Plate ■2j. Intersection of Cone and Cylinder. Draw centre lines E F and G H. Complete outline ofcylinder A B C D and draw semi-circle A E B. Draw outline of cone G J K, being sure that thecone is so located with reference to the cylinder thatits diameter at the…
Mechanical drawing
