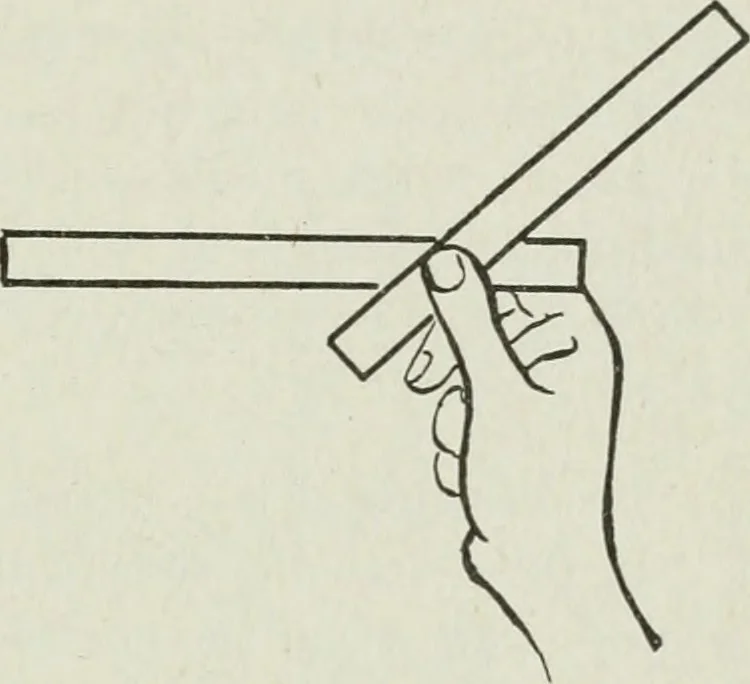

may beindicated after it has been found by pencil measurement. The linesnecessary to complete the drawing will represent edges which areparallel to those which have already been represented and will be drawnto converge toward the same vanishing point.In this lesson we exemplify the law that… … 3U0 AET We have found also, in the drawing of the euliieal model at an angle oi iortv-five degrees, that When ike faces of a rectanyular object are turned away equally,the vanishing points are equally distant from the point nearest the observer. That pui)ils may see the convergence to left and…
