Klenke, William Walter, 1888- [from old catalog] · Peoria, Ill., The Manual arts press · leaf 49

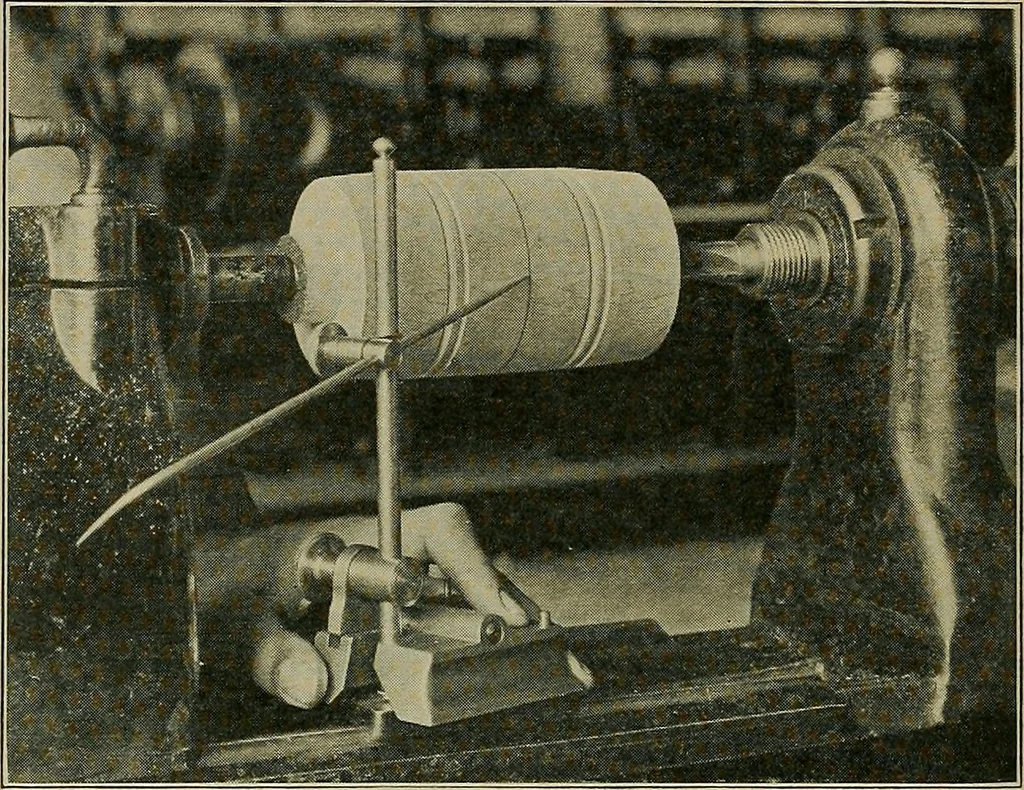

i(\i -IQO I :^i il J ^ N|CO t\2 Plate VIII. 46 ART AND EDUCATION IN WOOD-TURNING Fig. 35 illustrates one method for locating the hole in the headaccurately. While the wood is in the lathe, and before sand- … Fig. 35. The Surface Gage to Locate the Center for Boring. papering, mark the center line around the head. The next step willbe to cross this line in two places, so that a line passing thru thesetwo points will be at right angles to the axis. Set the surface gage on the shoe of the tee-rest, and…
Woodwork (Manual training)
