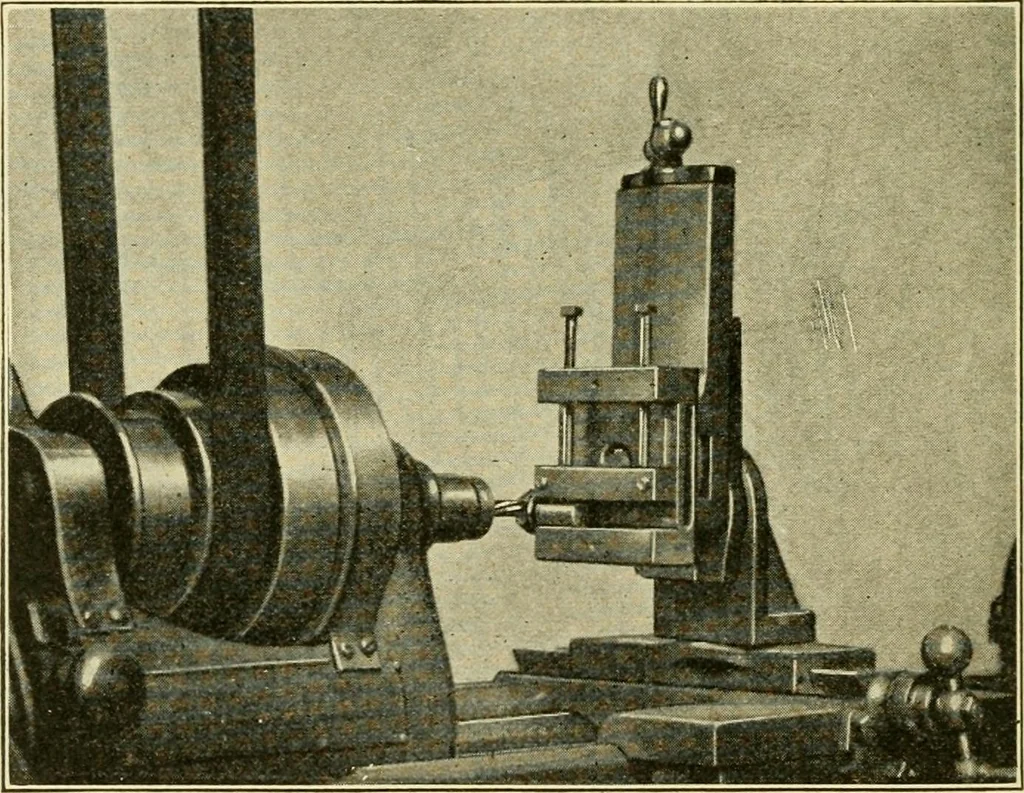

feed into the head spindle of the lathe. The vise m Shop Practice for Home Mechanics or milling attachment must be so arranged that it canbe revolved upon an axis at least 180 degrees. A millingattachment will be seen in Fig. 243. A very simple home-made milling attachment is shoMT;iat Fig. 244.… … Fig. 244—A home-made milling attachment in use lathe is used as part of the attachment itself. The com-pound rest is supported by a special angle plate, which,in turn, is mounted on the cross slide of the lathe in placeof the compound rest. This allows the angle plate to beset at an angle with the…
