The art of weaving, by hand and by power, with an introductory account of its rise and progress in ancient and modern times (1844)
Gilroy, Clinton G · New York, Baldwin · leaf 162

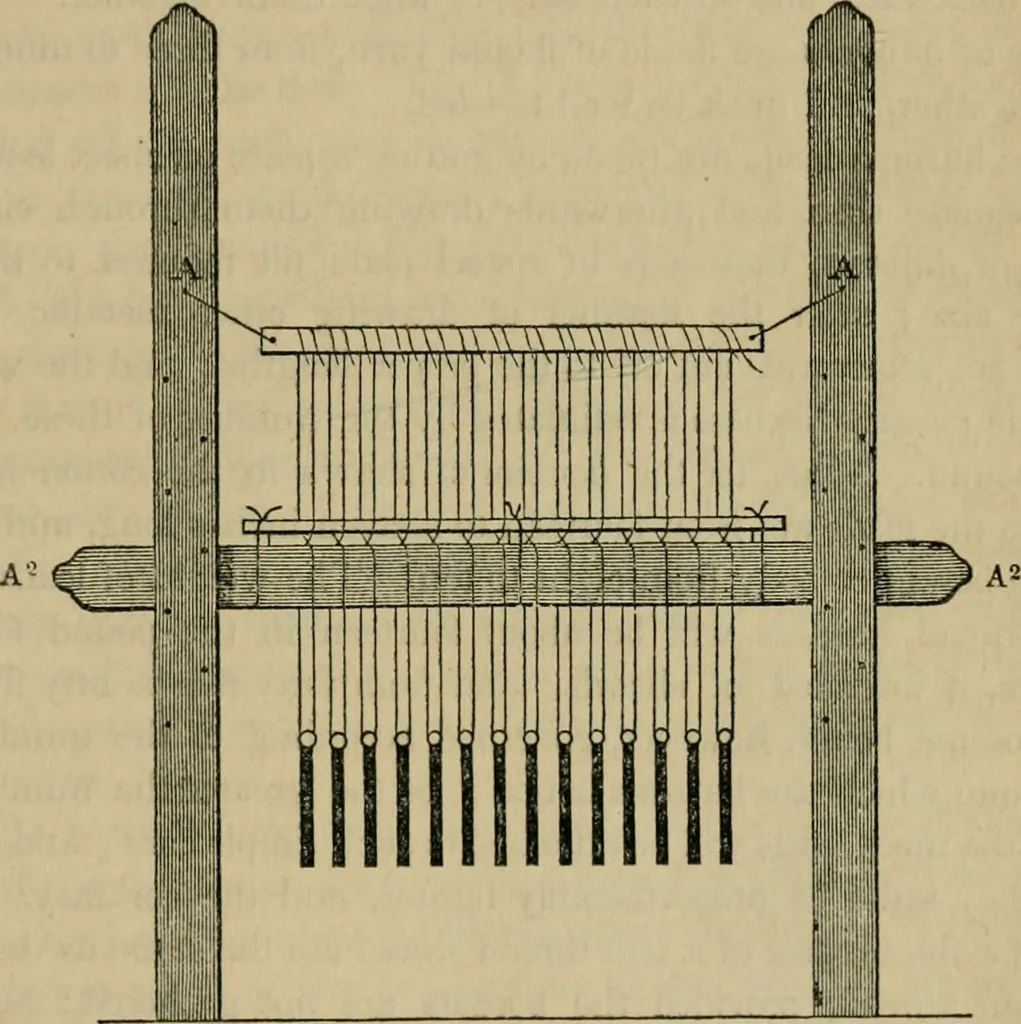

RAW LOOM. 147 tlie pulleys, will be diminished in propoition as the number of partsin a given harness are increased. It is also obvious, that as eachsimple cord is connected, by means of its tail cord, to a correspond-ing mail in each part, the pattern which is produced will be merelythe same group… … must be procured ; and the two upright sides, AA are fastened tothe inside of the loom, one on each side, and in the very same posi-tion between the cloth and the warp rolls, which the harness isafterwards to occupy. The cross bar of wood or slab stock A A,slides up and down in grooves cut in these…
Weaving
