The art of weaving, by hand and by power, with an introductory account of its rise and progress in ancient and modern times (1844)
Gilroy, Clinton G · New York, Baldwin · leaf 214

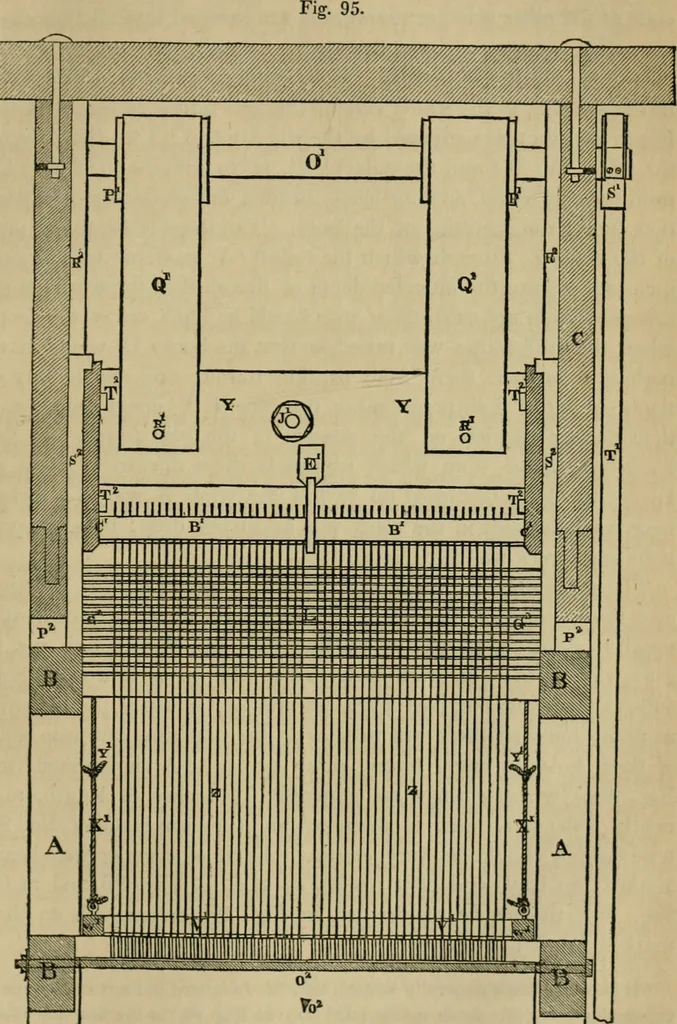

te row of needles, numbered attheir points which pass through the front board U, against whichthe cyhnder strikes, (see Fig. 94.) It will now be perceived, thatby working the strap or band T (see Fig. 95) in the manner JACQ.UARD MACHINE. 199 just stated, the cylinder I I will be turned round upon… … i ^ ,.,\;,N-^ ^N,>. s. ; ;s;-»^^!^^^,J.c^f^.^. J,V; -^,^^t4V^y;! 200 THE ART OF WEAVING. The wires Z Z are turned up at their lower ends, as representedin Figs. 94 and 96, and into the loops thus formed small rods or slips of wood V V are inserted, from side to side of the machine,one rod…
Weaving
Internet Archive · Public Domain Mark 1.0. Free to use for anything.
