The art of weaving, by hand and by power, with an introductory account of its rise and progress in ancient and modern times (1844)
Gilroy, Clinton G · New York, Baldwin · leaf 372

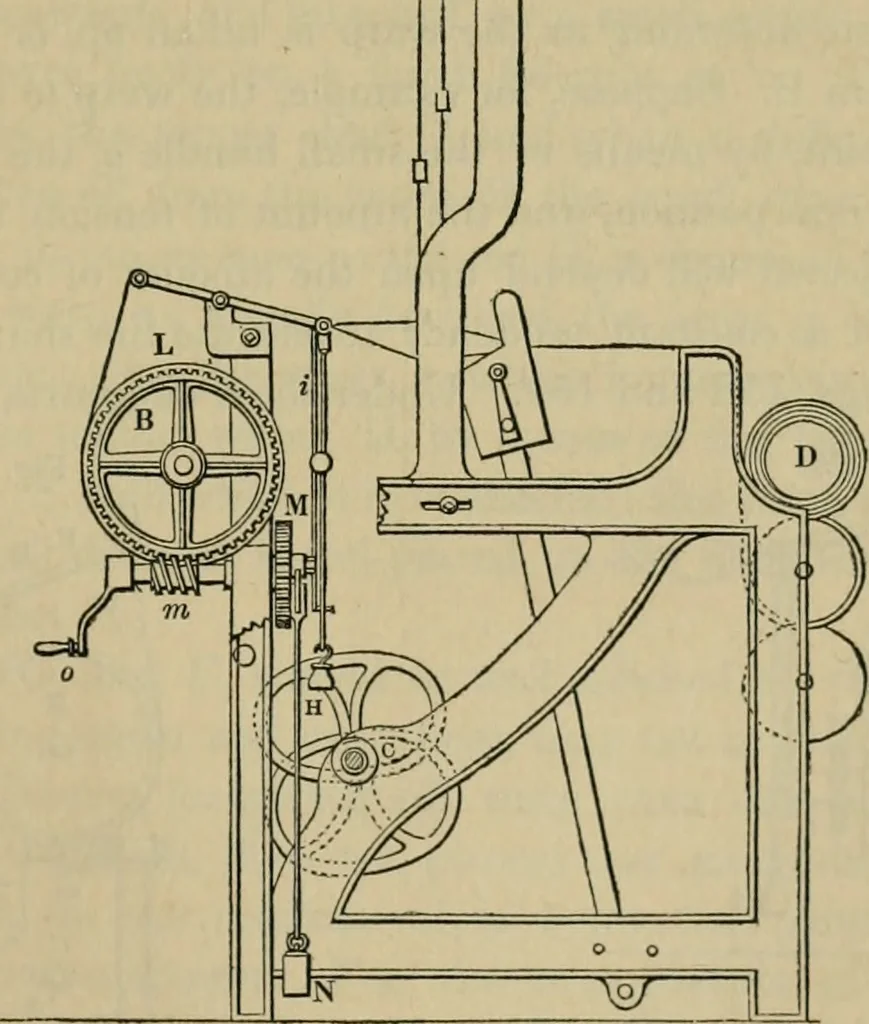

parts delineated as we consider re-quisite to explain and show the position in which the improvementsare applied. In Fig. 157, A, represents the driving pulley keyed on thecrank shaft, which gives motion to the lay ; B, the yarn beam;D, Fig. 158, the cloth roller; and C, the tappet shaft by… … supported at each side of the loom, parallel to, and immediatelyabove the yarn beam B: on this shaft is made fast two arms F, andF. The extremity of the arm F, carries a shaft G, similar to thatmarked E, and crossing the loom in the same way: the shaft E 350 THE ART OF WEAVING. moves freely on its…
