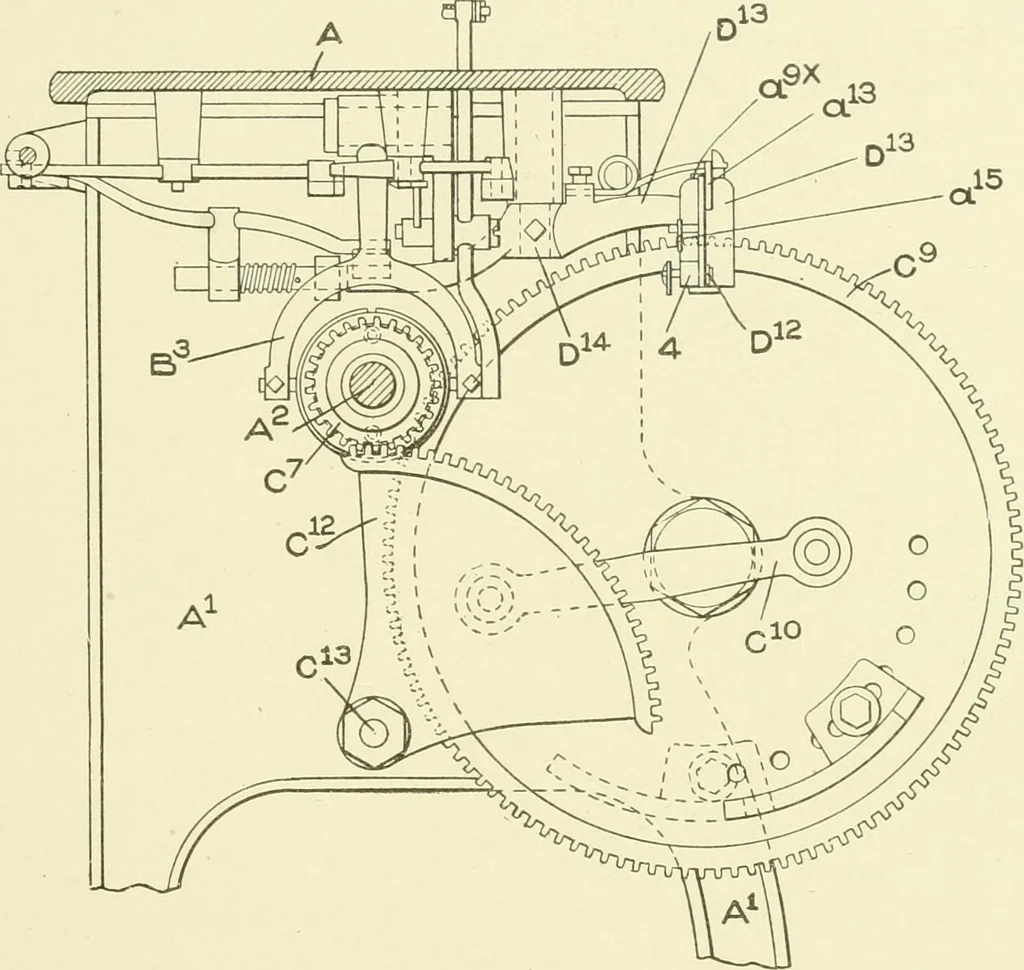

)e made by the pat-tern wheel. The outer end of the clutch lever D^^ (Figs 138 and 139) is forkedto embrace the wheel C®, each fork being provided with sliding pins 340 KNITTING 223 a and a^ (See Fig. 140), each pin having at or near one end a pro-jecting cross pin, entering inclined slots in the… … Fig. 139. The bar a>^ has connected to it a lever pivoted at D^^ and havingconnected to it a link slotted at one end to embrace and slide on a screwstud carried by a change lever a (Fig. 141) with three arms, andbeing pivoted on a stand attached to the bed. The change lever a^^ is acted upon its…
