The art of weaving, by hand and by power, with an introductory account of its rise and progress in ancient and modern times (1844)
Gilroy, Clinton G · New York, Baldwin · leaf 392

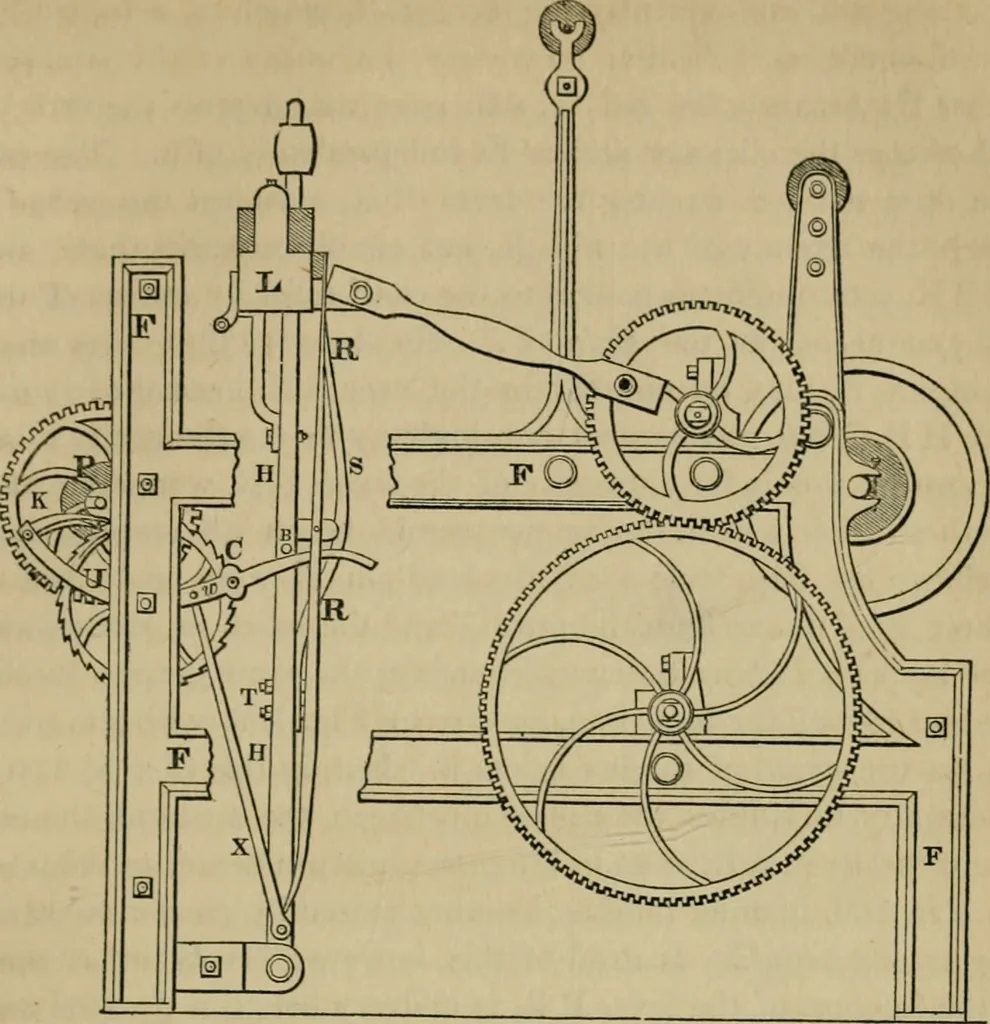

ite cis applicable. F F F F, is the frame of the loom ; H H. the sword of thelay ; R R, the lever which receives motion from the vibrating reed,and is the same as that marked Q,, in Figs. 165,166,167 and 168,71. n. in Fig. 169. and C. in Figs. 170 and 171. The lever RR, inthis loom is made to beat… … shown at Fig. 169.) L, is the lay; B, a small friction roller orstud-pin fixed on the side of the lay, like that above the letter y, inin Fig. 169; except that in this case it is turned upside down, forsome purpose best known to Mr. H. himself The arm C, beingacted upon by the roller B, will, of…
Weaving
