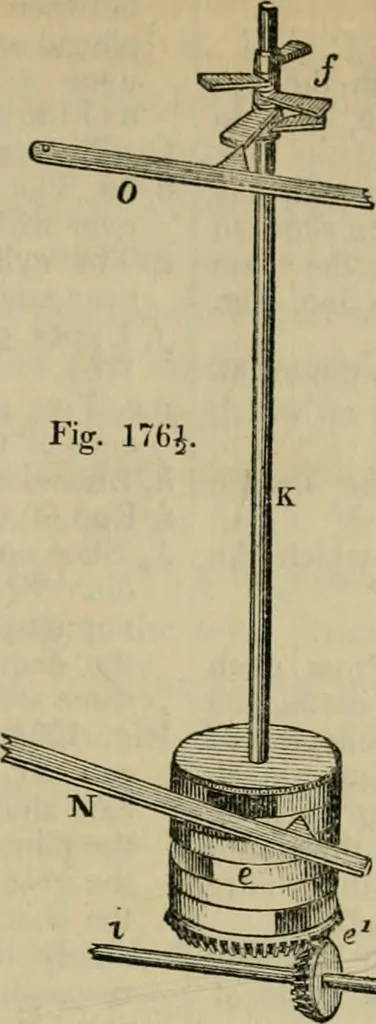

e to open wider and more clear, that the shut-tle may pass without danger of over-shots. The cam shaft is turned by means of a bevel gear on the bottomof the cylinder cam, driven by a pinion on the cam shaft (seeFig. 176|.) Another method of producing the same motions and effecting thesame object,… … <^?^wd arm or bar on each side, firmly attached to the loom, to support thetreadles, as in Fig. 176. The cams, such as already described, are placed horizontally be-tween two bars or arms attached to the frame of the loom at oneend, and at the other supported by a post or posts, standing uponthe…
