Gilroy, Clinton G · New York, G. D. Baldwin · leaf 214

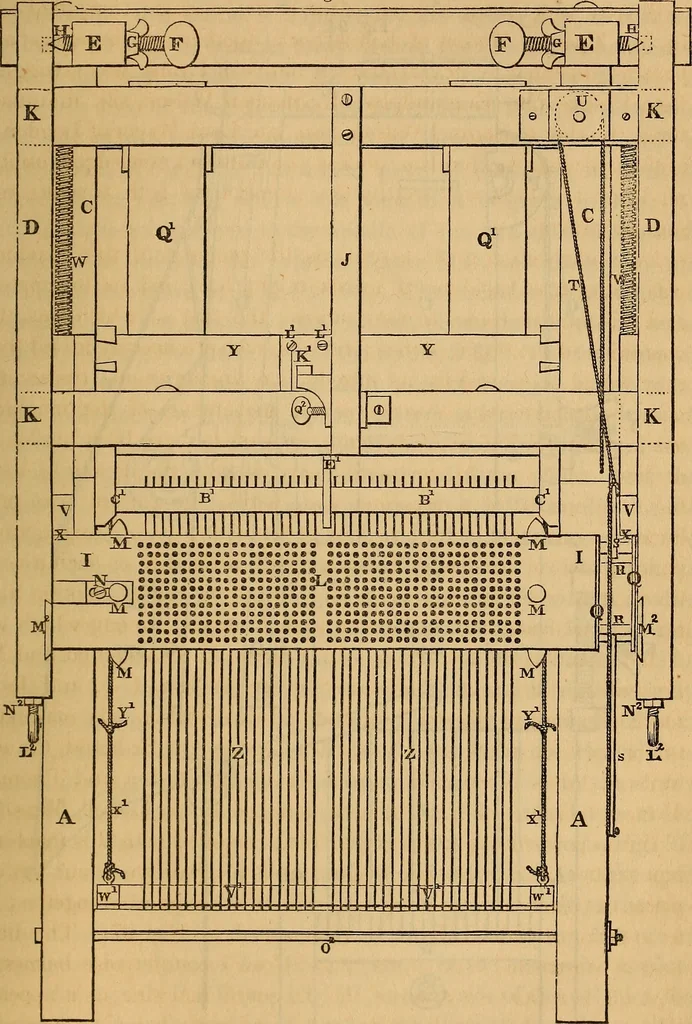

st, showing the cylinder, pierced with holes, for carryinground the endless chain of pattern cards ; Fig. 94 is an end view, orthat part which presents itself to the weaver when seated on hisloom; and Fig. 95 is a vertical section, taken transversely throughthe machine, showing the back board or… … We would here remark, that in describing the drawings just al-luded to, the same letters of reference indicate similar parts in all ofthem. A A, Fig, 95, is the frame of the machine, connected bysuitable cross bars at B B B B; the two upright posts C C, one at 25 194 THE ART OF WEAVING. each end of…
Weaving
