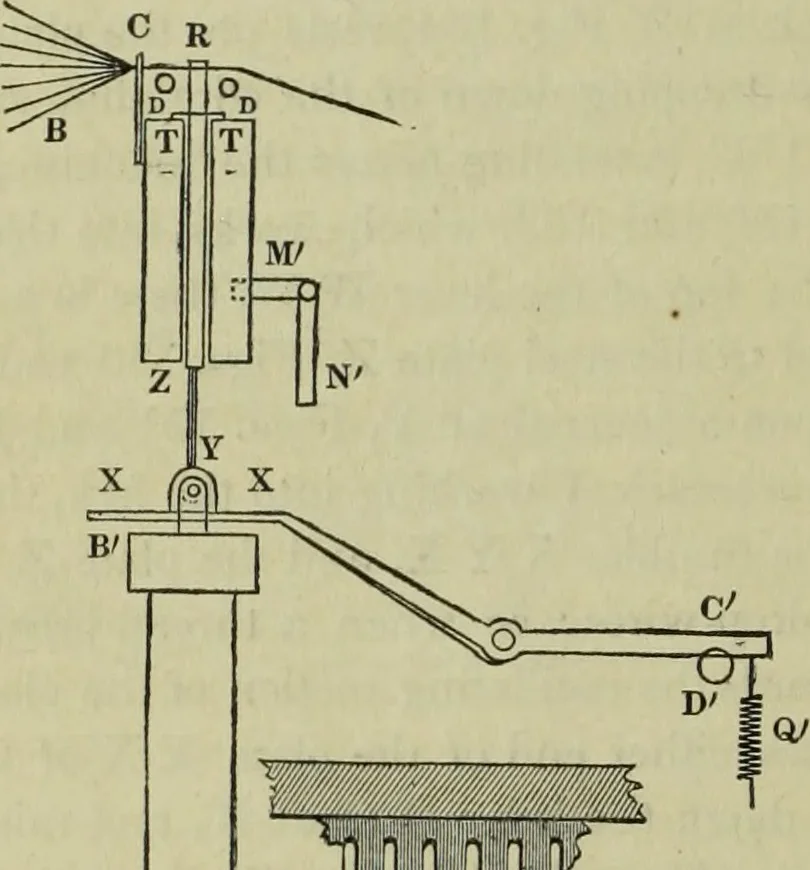

operates upon the rod D Dat P, Fig. 150, and shifts it to the right hand, until the point C ofthe lever B C, drops into the square groove seen in Fig. 150 : thelever or catch C, is kept in the groove of the rod D D, by thesmall spiral spring Q/. Thus by pulling forward the rail H H, thedrop-wires… … \Y o -4- Fig. 152 w X A ^7= vO> Fig. 154. Drop wire of one fourth the working size. WARPING. 337 Fig. 152 is a front view of the guide reed E, seen in Fig. 151, fordirecting the yarn on the beam F : it consists of a piece of sheetiron cut into a number of slits, corresponding to the number…
