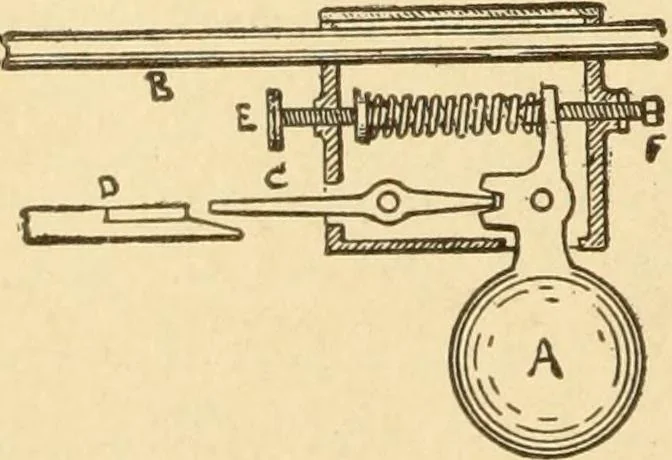

439. PLUMB-BOB GOVERNOR for a gas engine. The plumb-bob, A, is pivotedin a box attached to the exhaust valve pushrod. The back motion of the push rod pro-duces a forward motion of the bob, acting likea pendulum, and a downward motion of thepick blade, C, bringing it in contact with the valve… … MOTIVE POWER. 123
