The art of weaving, by hand and by power, : with an introductory account of its rise and progress in ancient and modern times. For the use of manufacturers and others. (1844)
Gilroy, Clinton G · New York: : George D. Baldwin · leaf 381

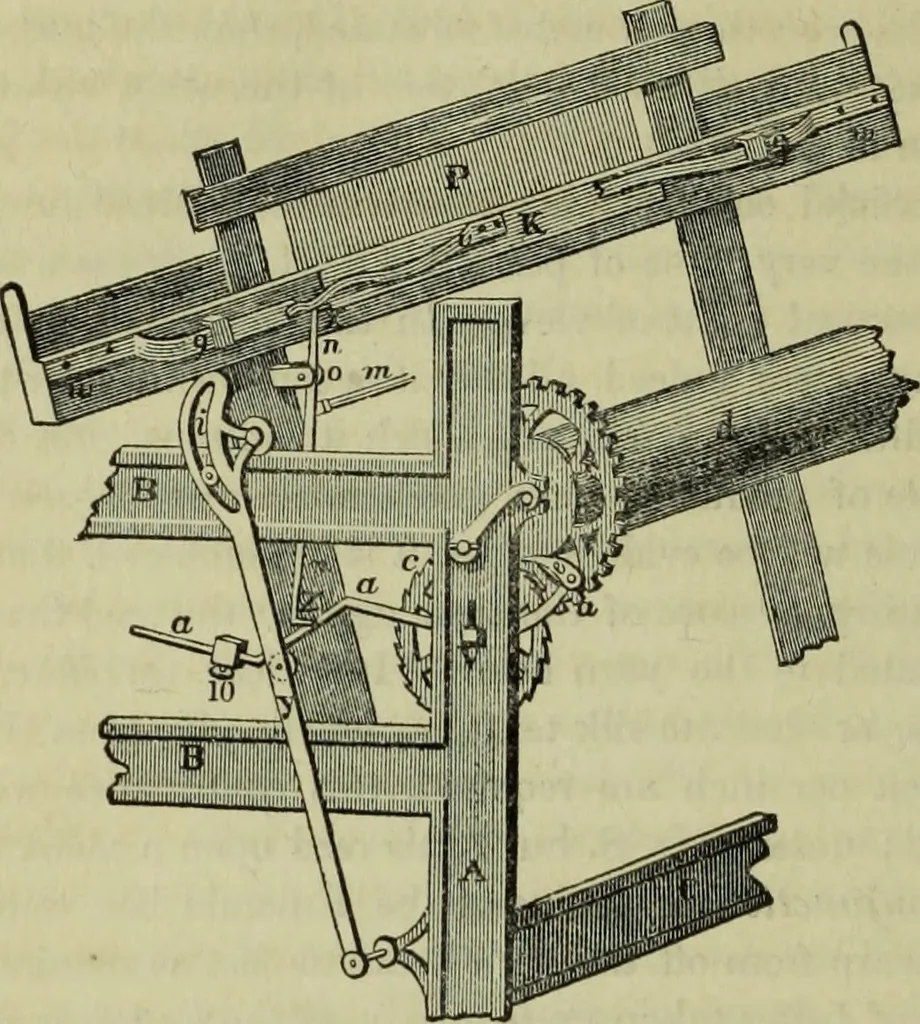

nes loom will be found an acquisition. Fig. 169, represents part of the frame of a loom, with the com-mon ratchet take-up motion attached thereto, as well as an improvedmethod of governing it, receiving motion from a vibrating reed,which is arranged in a frame, precisely the same as that shown… … n aa A B B C, is the frame of the loom ; w, 10, the lay; P, the reed ;g,g, two springs, for the purpose of keeping the under part of thereed frame K, pressed up. The springs g, g, are screwed by twoscrews at each end, as will be perceived by the black dots at thepoints w, w, and are governed, in…
Weaving
