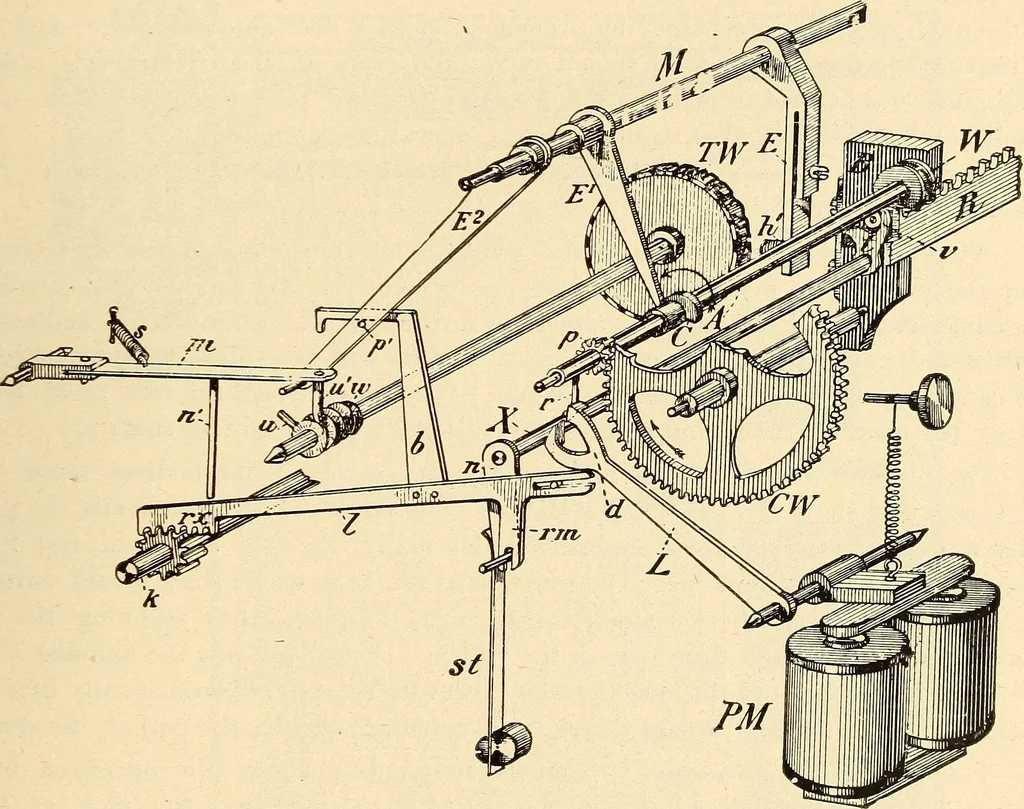

on the frame of the carriage. This rod, q, carries a pawl ^ which rides on asmall ratchet wheel riu. On the same shaft with rw is a roller rw^ the upper edge ofwhich is seen. Opposite rzo is a roller k, suitably pivoted, which presses against thepaper. The act of pushing forward the rod causes the… … ESSICK PAGE AND LINE RECEIVER—THEORY PRINTING DEVICES. frame a certain distance. Thus when the carriage is being returned to the startingpoint the rod impinges against the arm a and is quickly pushed forward, therebycausing the pawl d to turn the rollers, which eifects the desired upward movementof…
