The art of weaving, by hand and by power, : with an introductory account of its rise and progress in ancient and modern times. For the use of manufacturers and others. (1844)
Gilroy, Clinton G · New York: : George D. Baldwin · leaf 455

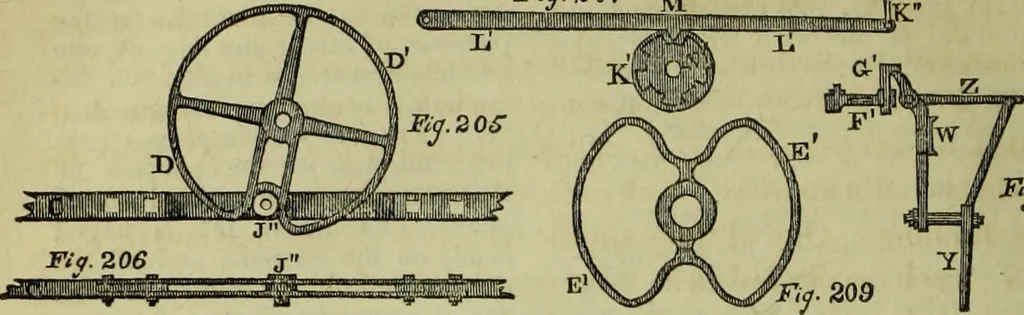

he cross-bar H H. G G, Four small set-screws for hold-ing the springs F, F, firmly,two set screws to each spring, asshown in Fig. 210. H H. Cross-piece of the latch-wlieel D, forming a part of thewheel D, being cast with it. I 1. Axis, or fulcrum of the latchesE E. J, (Figs. 205 and 206,) Small… … JV203 into nine equal parts, eight of which are occupied by the cams IT:the ninth part corresponds to the opening or jog of the cam wheelD D. Motion is communicated to the cam shaft H H, by thewheel O, (Figs. 203 and 204,) shown on its axis ; and the pinionwhich meshes into it (Fig. 203) is fixed…
Weaving
