The art of weaving, by hand and by power, : with an introductory account of its rise and progress in ancient and modern times. For the use of manufacturers and others. (1844)
Gilroy, Clinton G · New York: : George D. Baldwin · leaf 461

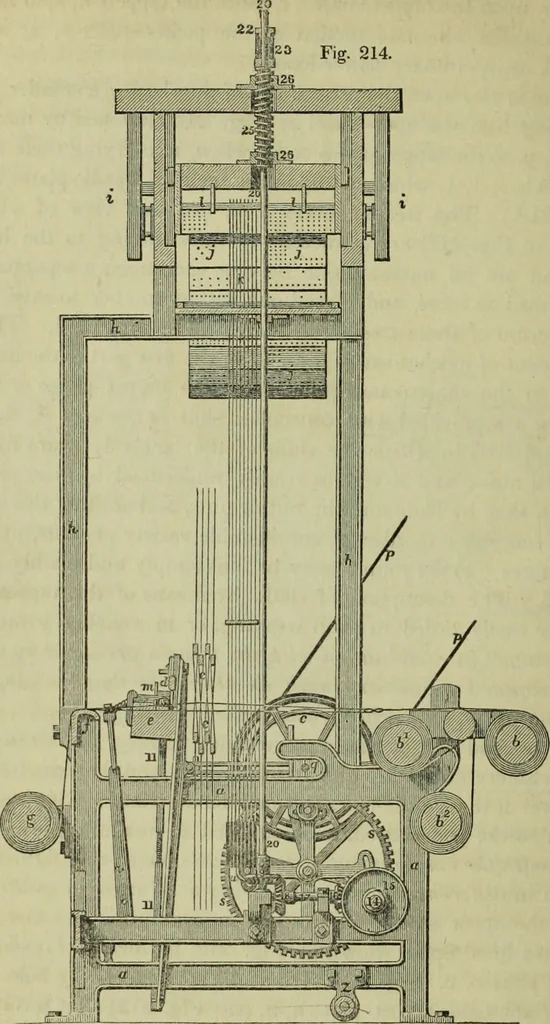

, ac-ting upon the bowl or roller 7, in the carrier 8, (Figs. 212 and 213)attached to one end of the levers g, g, upon the cross shaft 10.To the other end of these levers g, are attached vertical rods 11,11, adjustable by a screw in the middle, which enter at the bottomof the shuttle-race in the… … upon the bowl 7 ;—that is long enough for the lower shuttle, con-taining coarse weft, to put in one pick, prior to the Jacquardshedding, and one return pick of the same weft after the Jac-quard shedding, when the bowl 7, will immediately ascend, andallow the shuttle boxes m, m, to descend by their…
Weaving
