Audels answers on automobiles, for owners, operators, repairmen ... including chapters on the storage battery, electric vehicles, motor cycles, overhauling the car, etc. Fully illustrated and indexed (1911)
Booth, Charles Edwin, b. 1849 · London, New York, T. Audel & co · leaf 103

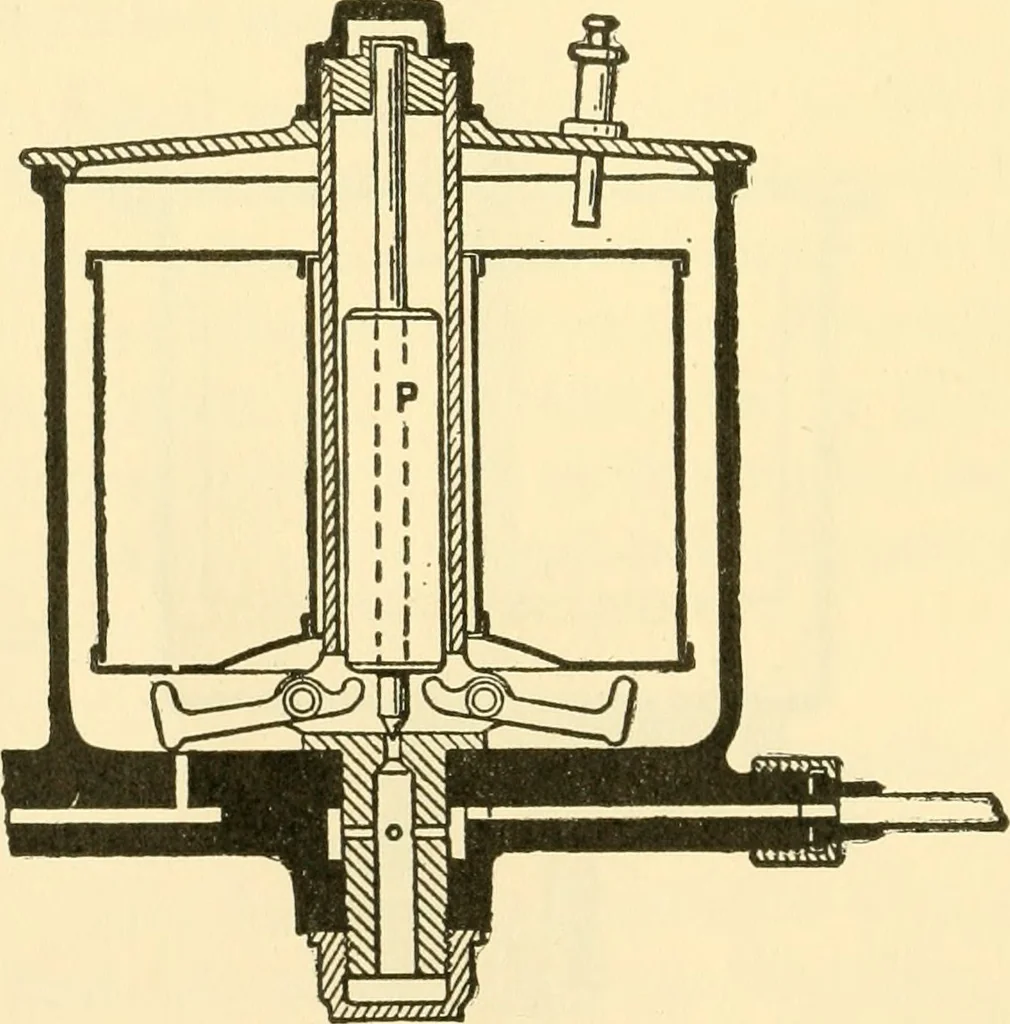

the disc,lifts it from its seat. Gravity and suction then both bringgasoline out of the nozzle to mi.\ with the air. The lift 76 AUDELS ANSWERS of the valve and its disc are controlled by an adjustablescrew which regulates the extent of the movement. Ques. Explain the diaphragm feed. Ans. This mode… … Fig. 29—Type of float feed in which the fuel supply is made adjustableby the use of a variable counterweight P. ply of gasoline is held on its seat when no air is passing.As soon as air is drawn through the carburetter the pres-sure is reduced on one side of the diaphragm; this causesits center to…
Automobiles
