Self-propelled vehicles; a practical treatise on the theory, construction, operation, care and management of all forms of automobiles (1906)
Homans, James E. (James Edward), b. 1865 · New York, T. Audel & Company · leaf 261

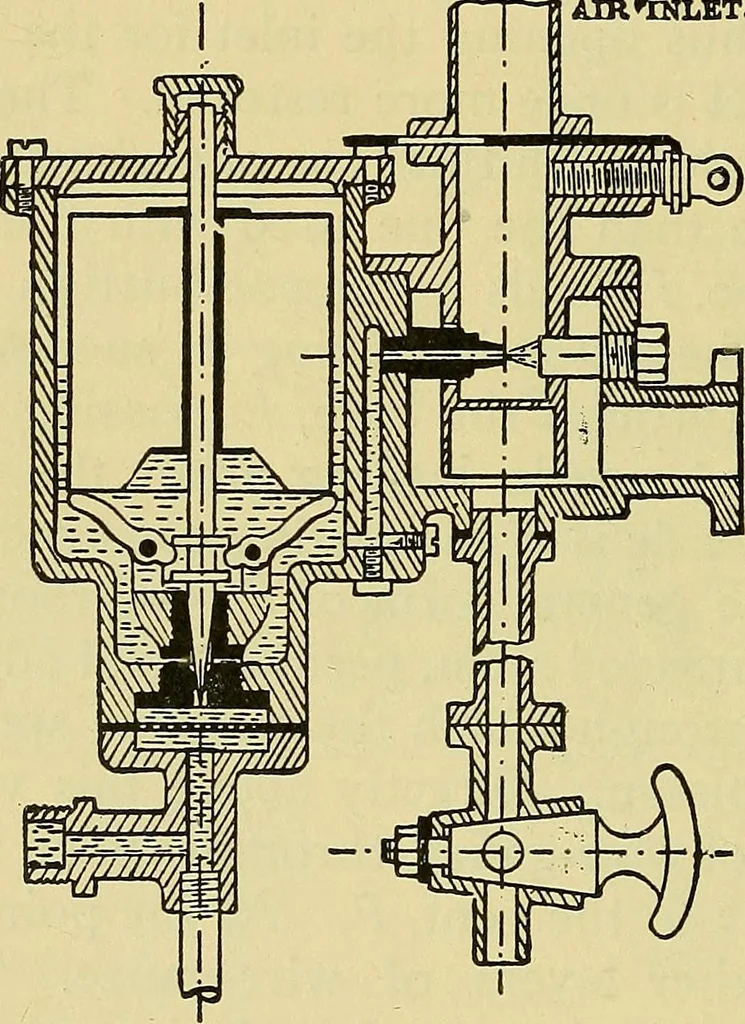

xcellent features of the instrument just de-scribed. In this also, the needle valve is held on a rod whichpasses through the body of the float, being also held in a de-pressed position, so as to close the vent by a weight, which israised by pairs of pivoted levers under the weight of the… … ADJUSTABLE AIR VALVE. TO CYLINDER. ~ ~ TT~ VALVE FOR EXTRA AIR. Fig. 169.—Theo,Peugeot Carburetter. This has many points in common with other car-buretters, except that the valve levers are differently arranged; the spraying nozzleat the side of the mixing tube, and the air-inlet from above. tion…
