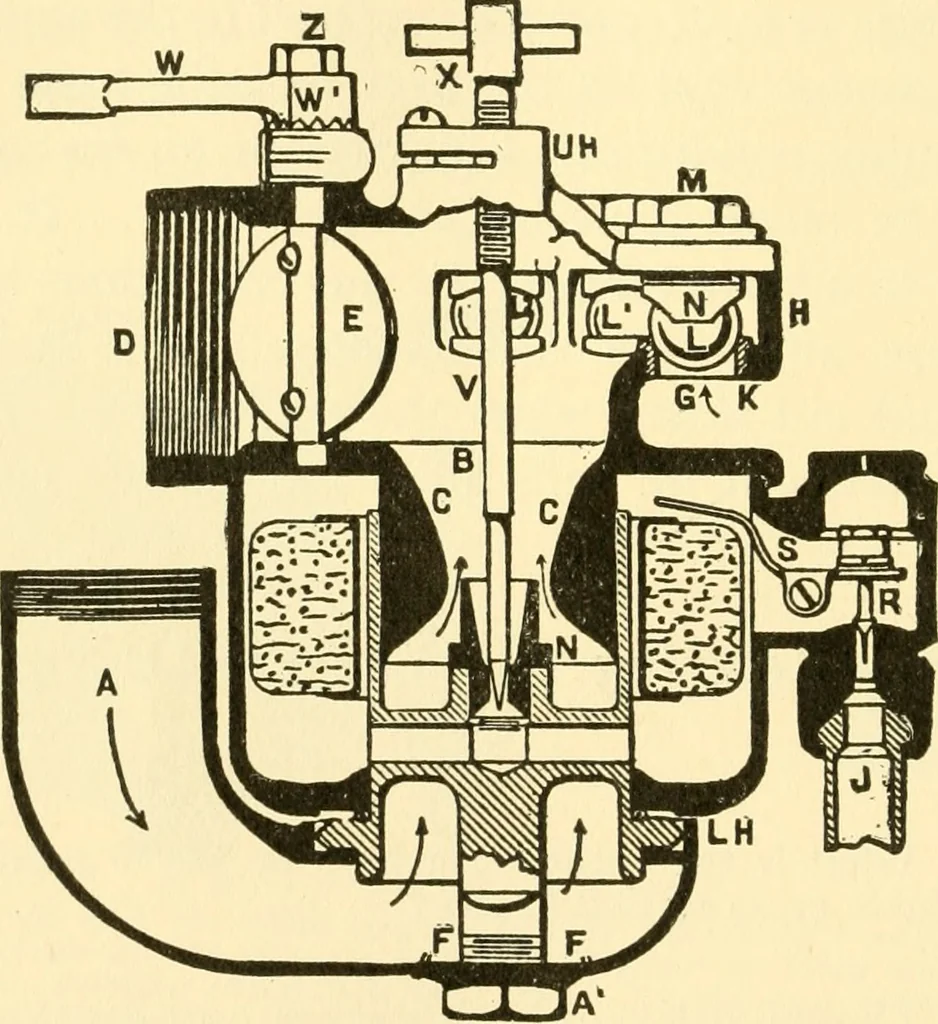

n applied to carburetter design?Ans. Yes. The principle has been utilized by shapingthe mixing chamber like two hollow truncated cones, as 100 AUDELS ANSWERS shown in fig. 44, with their small ends brought together,or. in other words, like the familiar hour glass. By locatingche spray nozzle at the… … Fig. 44.—The Kingston Carburetter. An example of the venturi type ofcarburetter. Air enters at A and converges above the nozzle N in the restrictedpassage, which produces the venturi tube effect. D is the exit to the motorcontrolled by the butterfly throttle E. Auxiliary air enters through…
