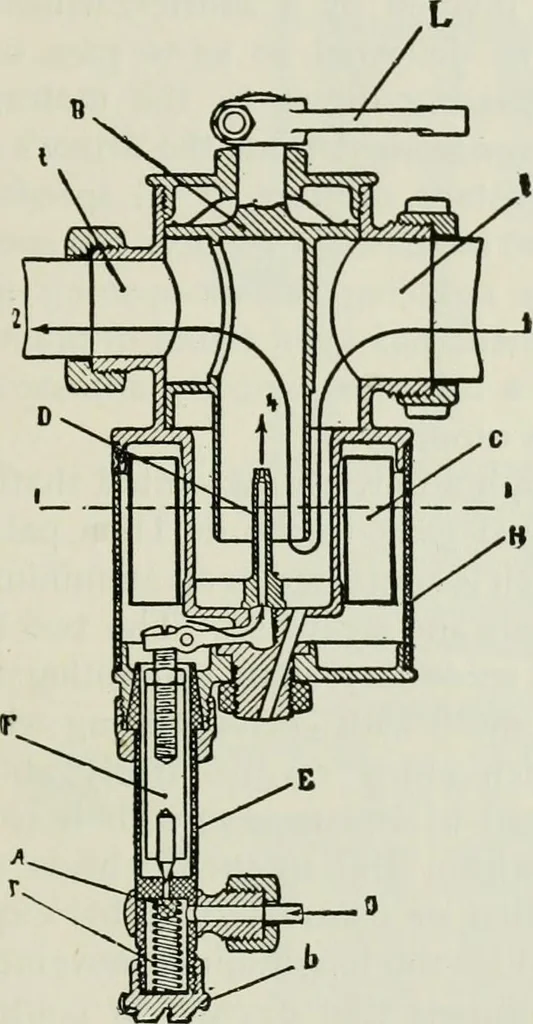

LIGHT CARS 193 exhaust-valve side of the engine and is connected with a leverfor the purpose of controlling the moment of sparking. Thegoverning and control of the De Dion engine are, in addition,effected through the exhaust valve, a movement being fitted bywhich its lift can be very finely… … A—Fine Gauze Sieve. b—Cap holding r. B—Regulating Valve. C—Float. D—Spray. E—Tube enclosing F. F—Weighted Needle Valve. G—Balance Lever. H—Float Chamber.I I—Level of petrol. K—Cap of Valve Chamber. L—Lever working Regulating Valve. b—Waste Cap. r—Spring carrying Gauze Sieve A.t—Air Inlet.…
