Audels answers on automobiles, for owners, operators, repairmen ... including chapters on the storage battery, electric vehicles, motor cycles, overhauling the car, etc. Fully illustrated and indexed (1911)
Booth, Charles Edwin, b. 1849 · London, New York, T. Audel & co · leaf 183

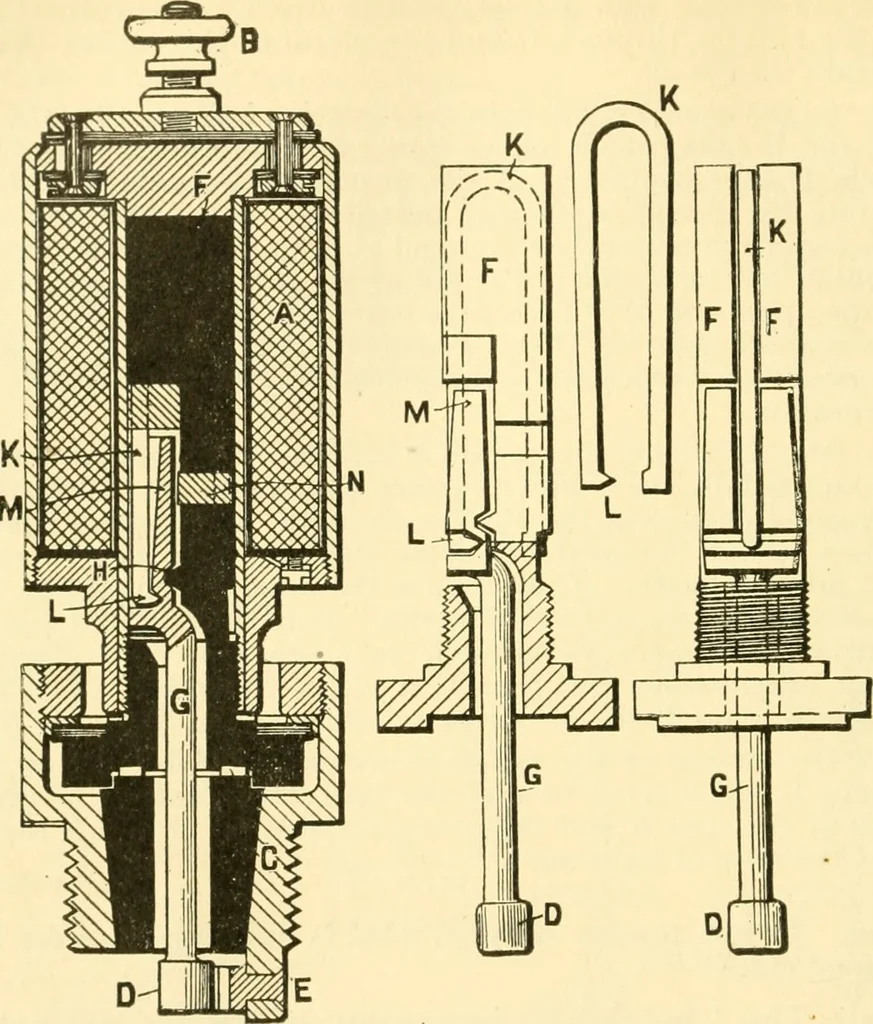

extreme rapidity, that is,the spring H (fig. 66) should be sufficiently strong to causethe shoulder or rod F, when it falls, to strike the igniterarm a decided blow, thus quickly snapping apart the con-tact points. Ques. What is the disadvantage of low tension ignition?Ans. The mechanical… … Fig. 67.—The Bosch magnetic spark plug. This consists of a coil A havingone end connected to a terminal B and the other to the plug casing C. Aspark is produced when a separation takes place between the moving con-tact D and the stationary contact E. Within the plug is a metal core F anda swinging…
Automobiles
