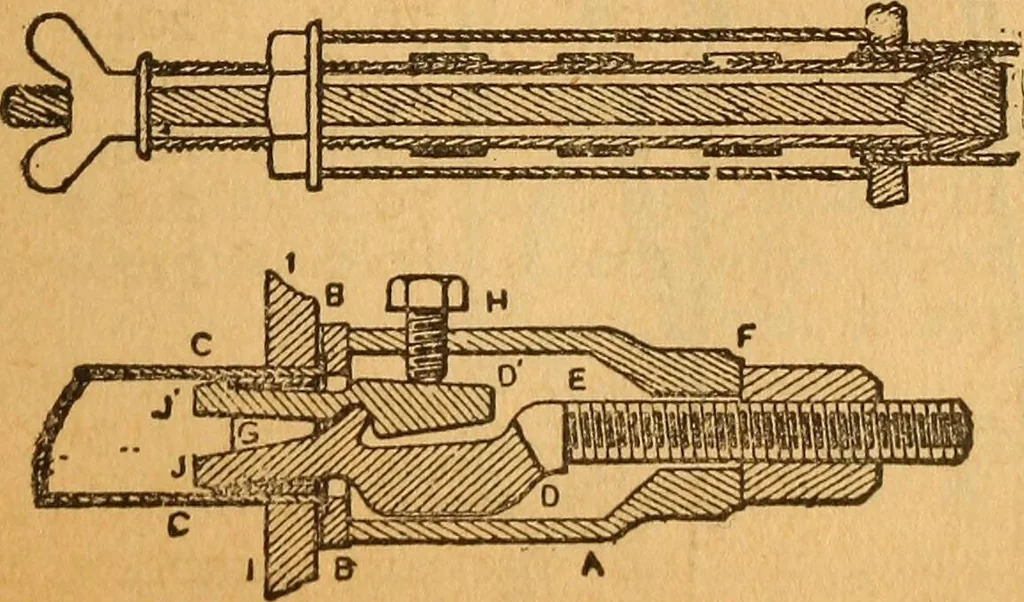

Nascent cherry. Cherry. Bright cherry. Dull orange. Bright orange. White. Brilliant white-welding heat. •< Dazzling white. TO DRAW FERRULES. A useful tool for drawing thimbles or ferrules out of loco-motive boiler tubesis here shown. It isan English inven-tion, and it is notstated that it is… … 3o6 BELTING SHAFTING AT RIGHT ANGLES. In Fig. I of the illustration, A is the driver. The beltleaves the pulley at C, goes to the driven pulley, and thendown to the driver at h. In Fig. 2 this movement is re- 8 ¥ \=~ Fig. Fig. 2. versed. Fig. 3 is a side view of the driven pulley B^ and Fig.4 shows…
