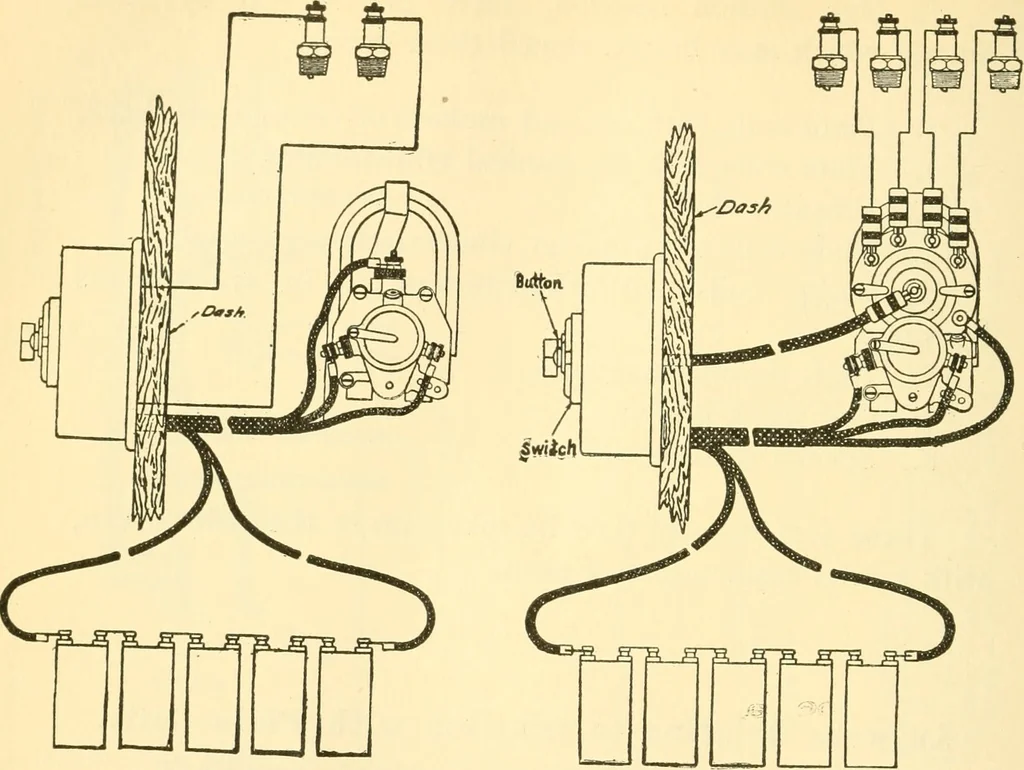

ion system with aplain coil. Ans. Fig. 102 is a wiring diagram showing the con-nections. In the figure the primary and secondary wind-ings of a plain coil are shown separated instead of over-lapping, so that the circuits may be easily traced. Thereare two circuits: i, the primary circuit, which… … Ques. Explain the operation of the system. Ans. The primary switch is first closed and then theengine cranked. As the piston approaches the upper deadcenter on the compression stroke, the nose of the contactmaker cam engages the blade and brings the contact pointstogether, thus completing the…
