Audels answers on automobiles, for owners, operators, repairmen ... including chapters on the storage battery, electric vehicles, motor cycles, overhauling the car, etc. Fully illustrated and indexed (1911)
Booth, Charles Edwin, b. 1849 · London, New York, T. Audel & co · leaf 264

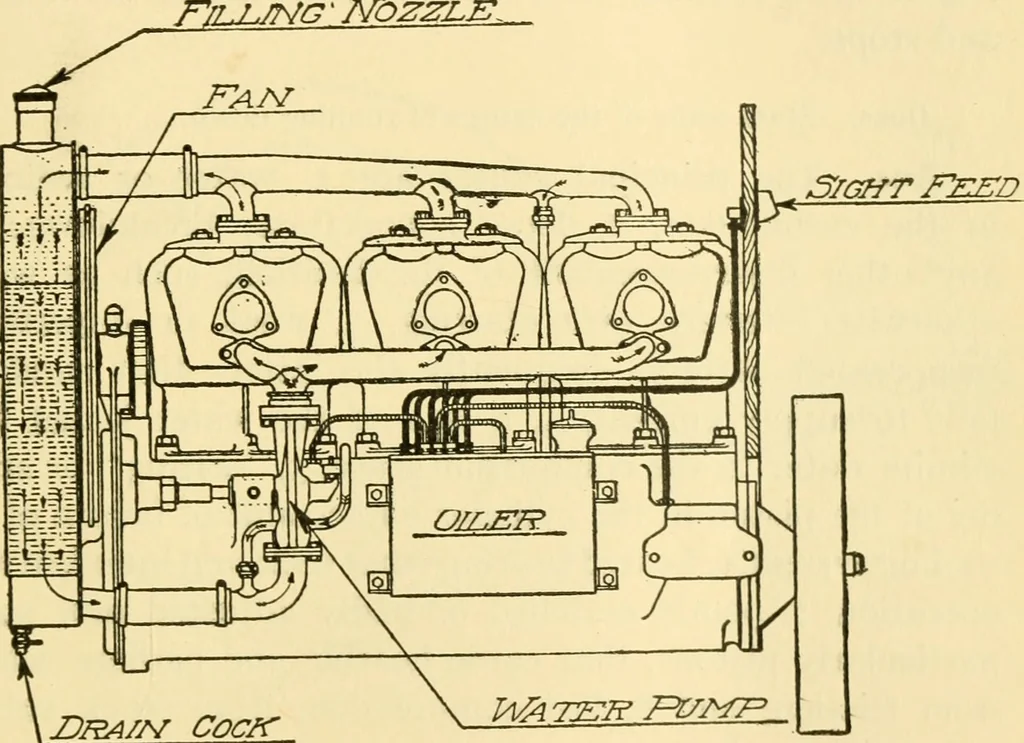

g. Back Firing or ignition at the wrong point in the cycle, withreversed piston movement, must be carefully distinguished from GAS ENGINE OPERATION 237 after firing, or explosions in the muffler or exhaust pipe. Occa-sionally the same term is erroneously applied to both mishaps. Ques. What are the… … /^AJyJATOJ? Fig. 148.—Thomas engine installation. At the side is seen the waterpump and lubrication system; the figure also illustrates the connection be-tween the pump and the water jacketed carburetter for warming the mixturein cold weather. This should emphasize the necessity of keeping the…
Automobiles
Internet Archive · Northeastern University Library · Public Domain Mark 1.0. Free to use for anything.
