Information; elementary electricity, motor car electric systems, the gas engine from an ignition point of view, driving the car (1920)
Phillips, Harvey Elmer, 1874-1948 · Dayton, Ohio, Auto Electric Systems Publishing Company · leaf 238

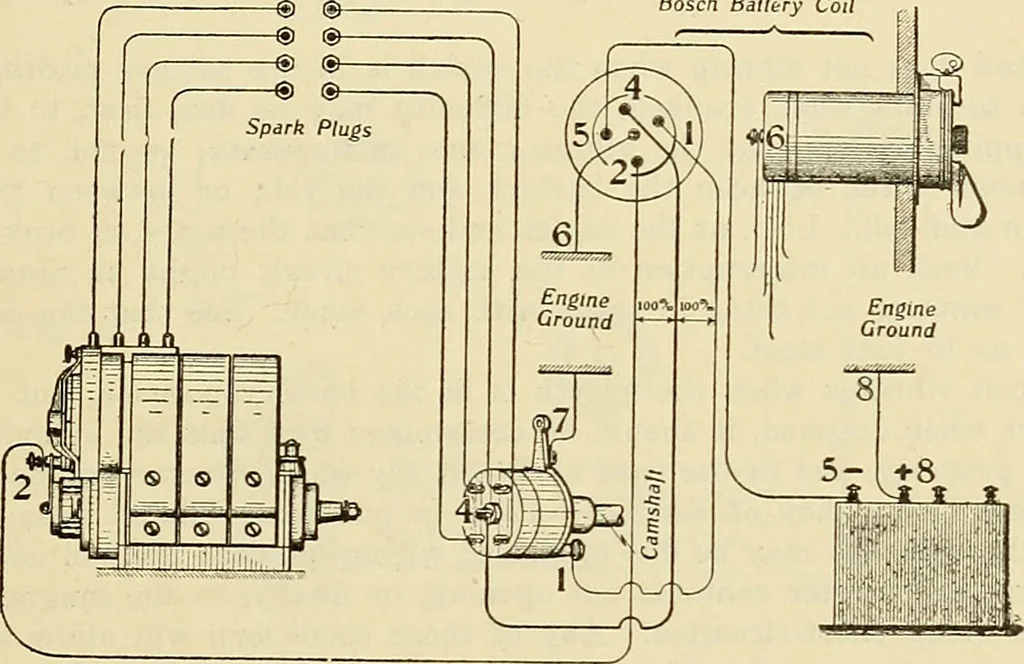

working condition, and if the cylinders contain mix-ture. To secure the latter condition, a few drops of gasoline may be injected intoeach cylinder through the priming cock. It should then be ascertained that theswitch is in position B and that the timing control lever is in the full… … Fig.1. BOSCH VIBRATING DUPLEX IGNITION SYSTEM. This system is composed of the magneto, vibrating coil, and switch. The ar-rangement is such that ignition may be had from battery or magneto as desired.The complete ignition system operates on one set of spark plugs. With the exception of the D and DR…
Automobiles
