Audels answers on automobiles, for owners, operators, repairmen ... including chapters on the storage battery, electric vehicles, motor cycles, overhauling the car, etc. Fully illustrated and indexed (1911)
Booth, Charles Edwin, b. 1849 · London, New York, T. Audel & co · leaf 293

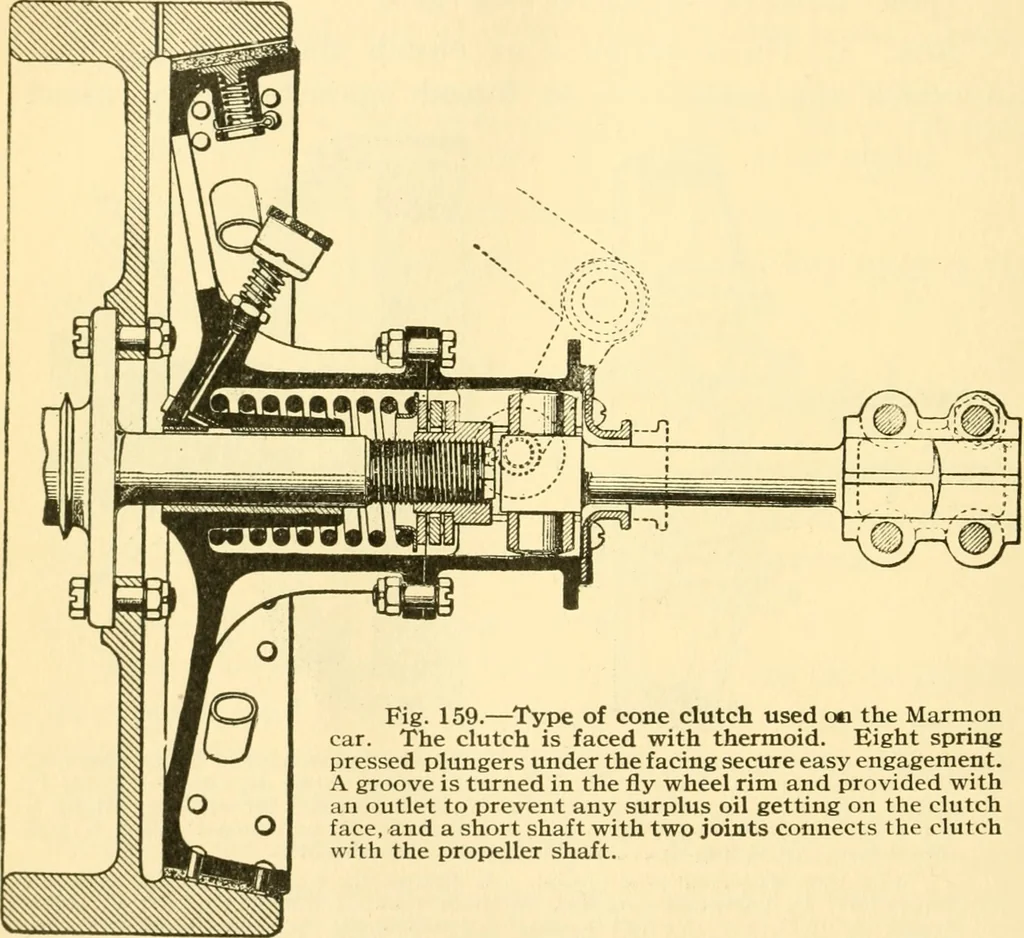

nd is forced into contact from the front. In both forms, the contact is between a metal surface and oneof leather or fibre. Since it is essential that no oil or grit beallowed to collect on the friction surfaces, the internal cone clutchis preferable, as enabling the surface to be more readily… … Fig. 159.—^Type of cone clutch used oo the Marmoncar. The clutch is faced with thermoid. Eight springpressed plungers under the facing secure easy engagement.A groove is turned in the fly wheel rim and provided withan outlet to prevent any surplus oil getting on the clutchface, and a short shaft…
